nuBoxx B-40
Available, delivery time: 1-3 working days *
€278.00
07171 87 12 0
Product

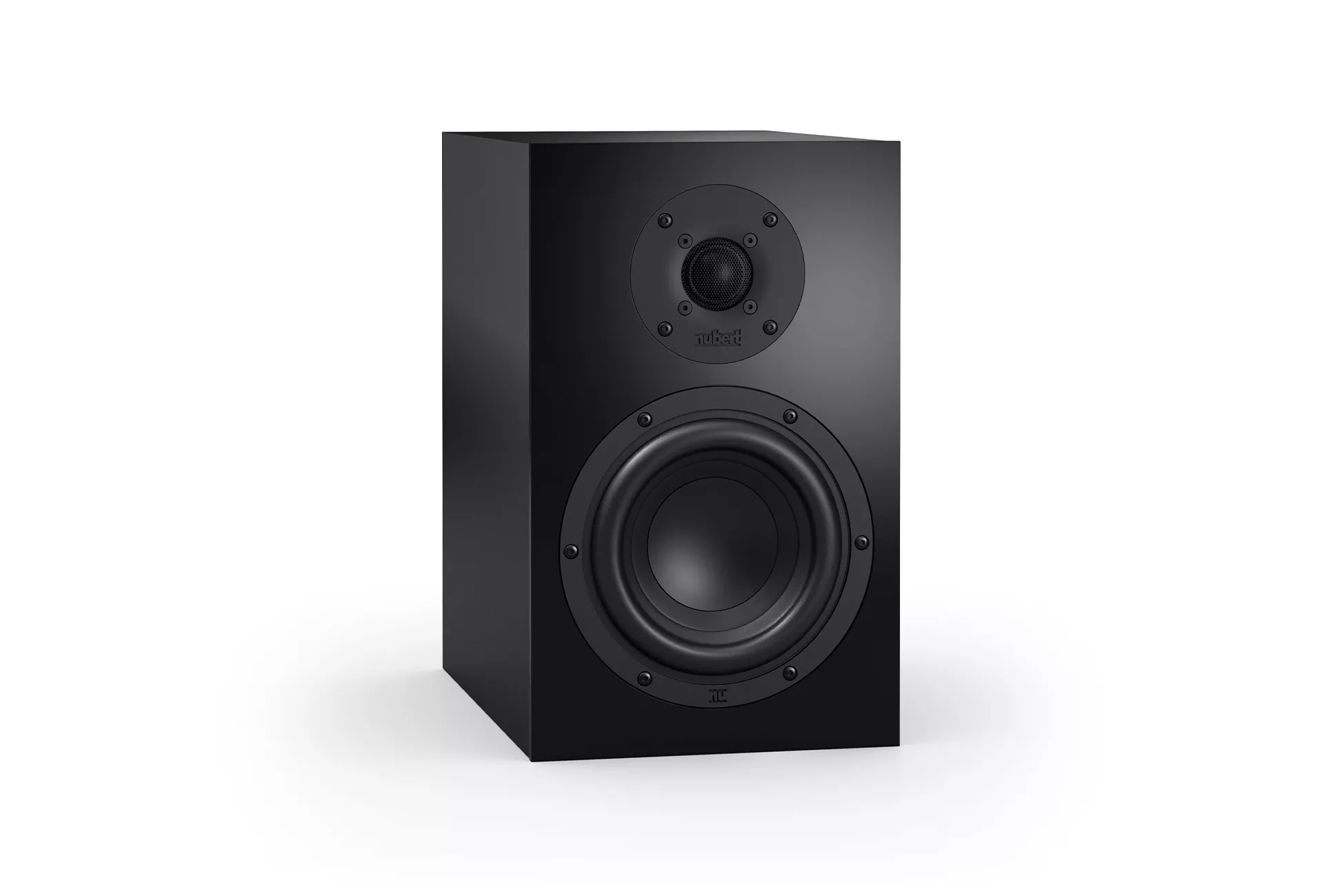

nuBoxx B-40
- Compact speakers for music enjoyment - even without a subwoofer with a clear design language
- 41 Hz bass response for grown-up sound with strong and accurate bass
- Powerful surround speaker for home cinema in the living room
- Low-resonance bass-midrange driver for clean mids with impulse-focused bass
- Convinces with production Made in Europe and resistant surface
- Foiled housing with noble, lacquered front and magnetic bezel
HiFi for all
The nuBoxx B-40 is the largest shelf speaker in the series, yet with its compact dimensions it can fit almost anywhere. At 41 Hz, it penetrates low bass ranges that are otherwise only reached by floorstanding speakers. This makes the B-40 just as suitable for stereo as for home cinema, even without a subwoofer.
Music detail
The nuBoxx B-40 was developed for the best possible detail in music, and you notice this with every piece of music it plays.
Surround speakers
In surround applications, the nuBoxx B-40 really comes into its own, ideally combined with the nuBoxx B-50 as a centre and a subwoofer from the nuSub-Series.
Space-saving with stand or on the wall
As a rear speaker on the wall or on a stand, the nuBoxx B-40 convinces with details and bass without taking up too much space.
PC speakers
The nuBoxx B-40 can also be used on a PC for games and music, and in combination with our nuConnect ampX we have the perfect set.
Details
nuOva B tweeter
The newly developed tweeter provides the detailed sound above 2.0 kHz that you have always wanted. Multi-layer damping and a sophisticated drive system ensure minimal resonance and thus low distortion in every frequency range. Your advantage: Instruments and voices are reproduced at a level far above the entry level.
Front panel
The front panel of the nuOva-B was manufactured in several hundred versions via 3D printing and rapid prototyping in order to achieve the ideal harmony between the radiation behaviour of the tweeter and the sound guidance at the front of the cabinet. Your advantage: a wide sweet spot with first-class stage imaging.
B² woofer
Our woofers with B² technology impress with bass power far beyond their size ratio. To achieve this, we use a powerful magnet system with high excursion for level bass reproduction. Your advantage: compact dimensions with a sound worthy of a floorstanding speaker.
nuTerminal and turnout
Our terminal is nickel-plated for the best possible contact and elegant appearance on the back as well. Foil capacitors for the best linear sound and protective circuits against overload are integrated for the crossover. Your advantage: durable components ensure a purchase that lasts a lifetime and sound that does not change over the years.

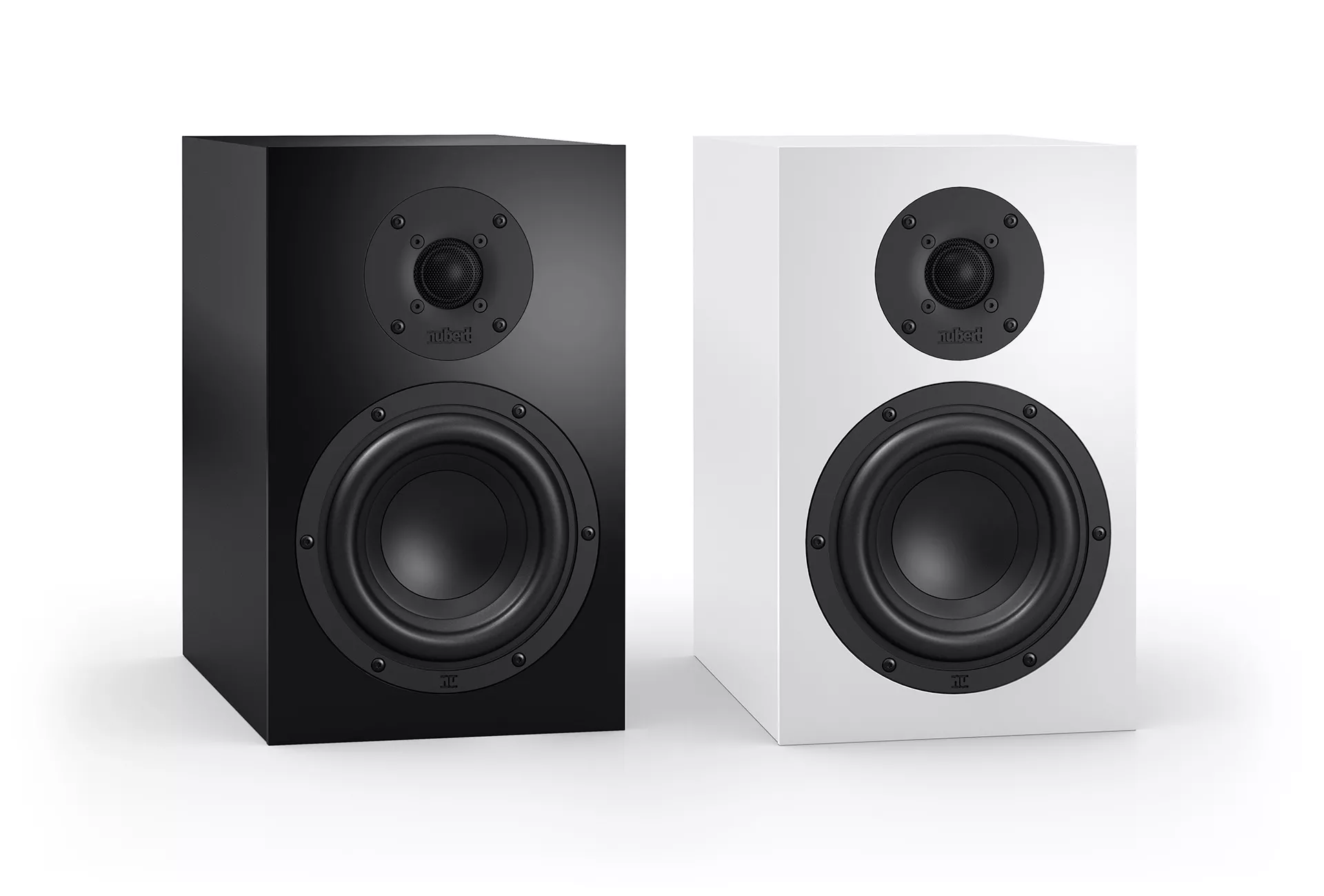

Colour
More variety in set-up: to match our nuPro, nuLine and nuVero series, the nuBoxx now also comes in timeless black and white. This gives you even more freedom when combining your set-up. Fabric trims in new colours also offer more individuality. The nuBoxx thus fits in with any home décor.
The versions with a grey front come with a grey-melted fascia as standard. For boxes in black and white, the covers in the desired colour can be ordered as an option!
Design
The simple design makes the nuBoxx models a timeless work of art. The simple attachment of the cover with magnets, provides the best possible protection for your speakers. The acoustically permeable fabric ensures transparent sound and an elegant appearance. Our product designer explains the background in a video.
Series overview
Our nuBoxx series is in the tradition of all Nubert speakers and aims to reproduce sound as naturally as possible. Our entry-level series comprises a total of six models that can be combined with the subwoofers from the nuSub series. This makes it possible to put together stereo systems as well as complete surround sets with excellent sound.
Nubert electronic GmbH
Nubertstraße 1, 73529 Schwäbisch Gmünd, Deutschland
Email: info@nubert.de Phone: +49 07171 - 8712-0
Safety Instructions
Before connecting and operating the device, carefully read the user manual, particularly the safety instructions. For your own safety, strictly observe all warning and safety notices in this manual and on the speaker. No work on the speaker other than the actions described here should be performed by the user. Keep this document accessible at all times and hand it over to any future owners.
Intended Use
This speaker is designed exclusively for audio playback in dry indoor environments. Use the speaker only as described in this manual. Any other use (especially safety-critical or medical applications, outdoor installation like specifically IP-certified products) is considered improper and may result in property damage or personal injury. Nubert electronic GmbH accepts no liability for damages resulting from improper use.
General Notes
Never operate the speaker unattended!
Risk of suffocation!
Never allow children to use the speaker unattended or play with its packaging! There is a risk that children may become entangled in the packaging film and suffocate. Ensure that children cannot detach small parts from the devices! These parts could be swallowed, leading to choking hazards. In case of ingestion, contact a doctor immediately!
Caution!
To avoid the risk of property damage, the speaker must not be opened by the operator. There are no user-serviceable parts inside the speaker. Maintenance and repairs should be performed only by authorized, qualified professionals from Nubert. In case of service needs, contact Nubert electronic GmbH directly!
Caution!
If the speaker is operated despite damage, further defects may occur. If any of the following conditions arise, immediately discontinue use of the speaker and contact Nubert electronic GmbH:
- The speaker has been damaged or has fallen.
- Objects or foreign substances have entered the device.
- The speaker emits a burning smell, smoke, or unusual noises.
Placement Instructions
Risk of injury or damage!
Move the speaker with care to avoid injuries or damage!
Caution!
An unstable placement location can lead to damage to the speaker.
- Place the speaker on a level, stable surface and ensure it cannot be tipped over!
- Ensure that no accidental tension is applied to the cables to prevent the speaker from tipping over or damaging the connection ports!
- Keep the speaker away from strong mechanical shocks!
Caution!
Excessive heat build-up inside the device can shorten its lifespan or lead to a fire. Heat exposure on the speaker surfaces can cause damage.
- Do not operate the speaker near heat sources such as radiators or stoves!
- Do not expose the speaker to direct sunlight!
- Never place burning candles or similar open flames on the speaker!
Caution!
Moisture can damage the speaker.
- Use the speaker only in a dry environment!
- Do not operate it outdoors or in damp rooms!
- Protect the speaker from all types of liquids, including dripping or splashing water.
- Do not place containers with liquids (e.g., flower vases) on or near the speaker!
- If the speaker is brought from a cold environment into a warm room, condensation may form inside the device. Wait at least 6 hours before turning it on to ensure it has reached room temperature and is dry!
- Do not use the speaker during rapid temperature changes!
Placement Instructions
Risk of injury or damage!
Move the speaker with care to avoid injuries or damage!
Caution!
An unstable placement location can lead to damage to the speaker.
- Place the speaker on a flat, stable surface and ensure it cannot be knocked over!
- Make sure there is no unintended tension on the cables to prevent the speaker from tipping over or damaging the connection ports!
- Keep the speaker away from strong mechanical shocks!
Caution!
Excessive heat buildup inside the device can shorten its lifespan or lead to a fire. Heat exposure on the speaker surfaces can cause damage.
- Do not operate the speaker near heat sources such as radiators or stoves!
- Do not expose the speaker to direct sunlight!
- Never place burning candles or similar open flames on the speaker!
Caution!
Moisture can damage the speaker.
- Use the speaker only in a dry location!
- Do not operate it outdoors or in damp rooms!
- Protect the speaker from any liquids, including dripping or splashing water.
- Do not place containers with liquids (e.g., flower vases) on or near the speaker!
- If the speaker is brought from a cold environment into a warm room, condensation may form inside the device. Wait until the speaker reaches room temperature and is dry before turning it on!
Connection Instructions
General Connection Instructions
- Unplug all devices in your system from the power supply before making any wiring changes!
- Ensure that all connections are made correctly and that all plugs are firmly seated in their sockets before reconnecting the devices to the power supply!
- Only use the designated cables and connectors for connections! Otherwise, damage or malfunctions may occur.
- When disconnecting the speaker, always pull on the plug, not the cable!
- Ensure that all plugs are securely seated in their sockets!
- Only use cables and accessories recommended by Nubert!
Caution!
Disconnect your amplifier/receiver from the power supply before connecting your speakers! Refer to the amplifier/receiver's user manual for instructions on connecting speaker cables.
Care and Cleaning Tips
Caution!
Improper handling of the speaker may cause damage.
- Always unplug the power cord before cleaning the speaker!
- Ensure that all connections are correct, there are no short circuits, and the speaker is completely dry before resuming operation.
- Do not use harsh cleaning agents or solvents such as gasoline, alcohol, or similar substances!
Housing
We recommend using a standard glass cleaner sprayed onto a cotton cloth. This allows most fingerprints and dirt to be removed easily. Alternatively, you can use window active foam. We advise against using microfiber cloths as they may cause micro-scratches on the surface.
Membranes and Speaker Drivers
To remove dust from a speaker driver, use a lint-free cotton cloth and gently wipe the membrane with very light pressure. All Nubert speakers' tweeters are protected by a grille, which can also be wiped lightly with minimal pressure. If the dust cannot be completely removed, a makeup brush from the drugstore can be used.
Committed to honest sound
We are a German company that has been developing and selling speakers directly for over 45 years. We stand for neutral reproduction so that you receive exactly the same signal that is present on the source. We add nothing and leave nothing out. We promise! You can find more information about our philosophy here.
German engineering expertise
Perfected by our developers in Schwäbisch Gmünd: Our nuBoxx series offers affordable access to the world of hi-fi sound - and at a very high level. Every nuBoxx loudspeaker fascinates with an astonishingly full-bodied and broadband sound that leaves nothing to be desired.
This product as 2nd choice
In some installation locations - for example with rearspeakers behind a curtain - the visual appearance plays a subordinate role, but the function must be guaranteed without restriction. Here, our 2nd choice is the ideal solution for price-conscious customers. These are exhibition items, customer returns or discontinued models with minor signs of use, but which have been technically inspected by our service department. We also give a full 2-year guarantee on the 2nd choice.
X-Remote App
With the Nubert X-Remote app, many functions can be conveniently controlled from your smartphone. In addition to the typical controls for volume and system status, the app allows precise sound adjustments – even using our X-Room Calibration feature on iOS. The app is available for free on the Google Play Store for Android and the Apple App Store for iOS.
Test results
We are awarded. And proud of it.
Überzeugend genreübergreifend
Erstklassige Wahl
Red Dot Design Award Winner 2022
Erwartungen auf ganzer Linie erfüllt
... deutlich höher unterwegs, als es der Preis vermuten ließe
Die neue Einstiegsserie der sparsamen Meister des Günstigen
Uneingeschränkte Kaufempfehlung
Accessories
We not only build exceptional loudspeakers and electronics, but also offer the matching accessories. So you can find everything useful for our products, from cables to adapters.
Our recommendations
Not the right one? We recommend taking a look at related products that you might like.
Downloads
FAQ's
Questions about passive speakers
You buy the product, then it arrives at your home and you can test it for 30 days without risk. If you don't like the product, you can return it free of charge and we will refund the total amount including all shipping costs.
In most cases, a quick look at the instruction manual is enough to solve many problems very quickly. We are happy to help you via phone +497171-87120 or E-Mail. according to the motto "It doesn't sound, it doesn't exist". Because for us, good service is part of the product.
Reviews
Login
Honest speakers - Honest reviews
Satisfied? Or can we do something better with our products? Then write us your review. Simply log in to your account and write the review of your order here.
Here with us, every review is checked for authenticity and is then approved. So you can be sure that the feedback you give us about our products is genuine.
30 June 2024
Ich bin begeistert
Ein kompakter Lautsprecher der vor Kraft nur so strotzt! Es ist kaum zu glauben was für ein Klangvolumen da rauskommt. Bass ist fast schon im Überfluss vorhanden. Ich habe die BR-Öffnungen mit etwas LS-Dämmmaterial versehen, da in meinem ca. 16 qm Musikzimmer der Bass schon etwas zu viel war. Mitten und Höhen sind klar und feinzeichnend. Ich höre Details die vorher nicht vorhanden waren! Meine Absolute Kaufempfehlung!
16 May 2024
Perfekt fürs Wohnzimmer
Ich hatte lange eine massige Magnat MSP150. Die waren mir nun zu wuchtig und zu potent im Bass. Die nuBoxx B-40 ist klanglich schlank und passt mit bestens. Allerdings riechen die Boxen nicht gerade toll. Katzenpisse ist meine Assoziazion 😳 Nicht heftig, aber wenn ich nahe an den Boxen durchkomme irritiert mich das etwas.
30 October 2023
nuboxx B-40
Da hat Nubert eine Boxx hergestellt, da würde Horst Lichter sagen ! EIN TRÄUMCHEN ! und dann der Preis , unschlagbar.
6 September 2023
nobel & fein & tief
Zuerst möchte ich mich ganz herzlich bei Herrn Bretzler bedanken. Sie nahmen sich so viel Zeit und ich lauschte Ihrem Vortrag über Akustik, dem physiologischen Hörvermögen und vielen technischen Informationen. Ja die nuBoxx B-40 ist für mich DER Lautsprecher der zu meinem Hörraum (25qm) passt und den ich nach Vergleichen mit anderen LS anderer Hersteller gefunden habe. Klar gibt es Kompaktlautsprecher von D…, K… oder C… für einen vierstelligen Betrag und sie haben alle ihre Stärken und eben auch Schwächen. Aber die B-40 hat mich schwer beeindruckt. Nobel ist das richtige Wort und damit meine ich nicht nur die hochwertige Optik, sondern den Klang. Sie löst sehr fein auf ohne zu sezieren, eher etwas warm. Stimmen und Instrumente sind so klar und natürlich, dass der Slogan „Ehrliche Lautsprecher“ wörtlich zu nehmen ist. Ich bin Bassfan. Dazu komme ich noch. Los ging´s mit Depeche Mode, dann ein Konzertalbum von Eurythmics in der Rockversion, ACDC und dann Bach. Das war sowas von - sich zurücklehnen und genießen. Ein Lautsprecher bei dem man die Musik einfach durchhören kann. Andere teurere Lautsprecher fand ich nach 20 Minuten manchmal anstrengend. Und sie scheinen ihre Kraft von hinten aus der Tiefe zu schöpfen. Das meine ich mit nobel. Bei geschlossenen Augen höre ich einen größeren und schweren Lautsprecher. „Klang wie ein Standlautsprecher“ stimmt. Ja, nun kommt der Bass dran. Das war eine Abwägungsfrage B-40 oder nuLine34. Ich höre gern Elektro. So sauber und strukturiert bis zu zur ihrer physikalischen Untergrenze spielen nur wenige Lautsprecher. Die Basslinien werden niemals verschwommen. Der Bass ist kernig und hat Druck, füllt den Raum und macht die Musik lebendig. Ich habe mit den nuBoxx B-40 ein kleine aber feine Yamaha-Anlage getunt. Daneben steht noch ein T10, der jetzt keinen Strom mehr verbraucht. Der T10, der an sich auch nicht schlecht ist, ist längst nicht präzise genug im Vergleich zu den B-40. Den 900ér von Nubert habe ich auf dem Schirm. Richtig was her machen die 652 Ständer statt der MS-67 – eine Augenweide und den Preis wert. Dazu noch die dicken 4´er Kabel nuCable LS Studioline (In-Akustik). nuBoxx B-40: Kaufempfehlung – na klar!
Technical information
| Device type: | Compact loudspeaker |
|---|---|
| Width: | 21,0 cm |
| Height: | 34,0 cm |
| Depth: | 31,0 cm |
| Weight: | 9,6 kg |
| Packaging dimensions pair packaging (W x H x D): | 57,0 cm x 43,0 kg x 48,5 cm |
| Shipping weight pair packaging: | 21,3 kg |
| Standard colour: | Black |
| Color: | Black with Black front |
| Scope of delivery: | nuBoxx B-40, elastic bumper, speaker cable 2x 0.75 mm² 4 m, operating instructions in German |
| EAN / GTIN: | 4260166757743 |
| Country of origin: | China |
| WEEE-Reg. No.: | DE 48888173 |
| Construction Method: | Bass reflex |
| Construction: | Direct radiator |
| System: | 2-way |
| Tweeter: | 1x 26 mm |
| Tweeter material: | Silk fabric |
| Tweeter crossover frequency: | 2.000 Hz |
| Bass-midrange driver: | 1x 180 mm |
| Bass-midrange material: | Polypropylene |
| Lower cut-off frequency (-3 dB): | 41 Hz |
| Upper cut-off frequency (-3 dB): | 24.000 Hz |
| Lower cut-off frequency (-6 dB): | 36 Hz |
| Upper cut-off frequency (-6 dB): | 28.000 Hz |
| Efficiency (2.83V/1m): | 85,5 dB |
| Efficiency (1W/1m): | 82,5 dB |
| Continuous load capacity: | 160 W |
| Pulse load capacity: | 220 W |
| Shielding: | Magnetically compensated |
| Impedance: | 4 Ohm |
| Protection: | Self-resetting fuses |
| Loudspeaker inputs: | 1 |
Box type, sound and recommended use
The outstanding strengths of the nuBoxx B-40 include its visually and acoustically confident appearance and its wide range of applications. As the larger of the two compact speakers in the series, the B-40 surpasses the top sonic performance of its smaller sister, particularly in terms of maximum level and bass capability. It is even more powerful, is recommended for larger rooms or listening distances and penetrates ten Hertz further into the sub-bass range: up to 41 Hertz, measured at the -3 decibel point. This allows it to impressively bring out even deep organ concerts or demanding synthetic bass lines.
The main reason for this, apart from the larger cabinet volume, is the newly designed bass-midrange driver with a diameter of 180 millimetres. It relies on a particularly powerful magnetic drive, sets impressive amounts of air in motion with almost three centimetres of travel, is optimally directed by the precisely tuned crossover and always remains calm even beyond room volume. The nuOva B tweeter, also newly developed, ties in harmoniously with the midrange at 2,000 hertz and seamlessly continues the excellent performance of its playing partner. Whether classical or rock, soundtrack or studio album, loud or soft, gentle or brute - the nuBoxx B-40 always plays honestly, with power and grace, without glossing over or swallowing up details.
So if you can spare a little more space in your listening room than the more compact B-30 takes up, if you can give your speakers more room but want to challenge them even more, if you place even more value on a solid bass foundation, then it's best to opt for the nuBoxx B-40 - whether for the stereo system, for the home cinema system or for multimedia applications.
Construction principle/housing
Two-way compact loudspeaker in bass reflex design. The 16-millimetre-thick cabinet walls are made of acoustically advantageous and robust wood-fibre material (MDF). Precisely calculated internal bracing and strategically positioned damping elements not only increase the mechanical stability of the construction, but above all suppress resonances that are harmful to the sound.The housing body and the baffle are coated with a high-quality, robust decorative film in black or white. The optional, removable front cover, which is available in various colours, is covered with high-quality acoustic fabric and adheres magnetically so that the elegant appearance is not impaired by visible mounting sockets. With the supplied elastic buffers, the box finds secure footing.
Chassis
The nuBoxx B-40 is equipped with a 26 millimetre tweeter (nuOva B) and a 180 millimetre bass-midrange driver (B² technology).
All nuBoxx models rely on the same silk-fabric tweeter dome, developed on the basis of the advanced nuOva chassis of the nuLine series and christened nuOva B. A multi-layered damped rear chamber volume behind the oscillating system ensures a particularly harmonious frequency transition to the bass-midrange driver, while the carefully designed and precisely manufactured front panel with wide dispersion sound control optimises the dispersion characteristics and fine detailing of the super-high frequency range above 7 kilohertz. The new nuBoxx tweeter thus sets standards in terms of resolving power and allows the audience to enjoy maximum listening pleasure even outside the narrowly defined "sweet spot".
The 180-millimetre bass-midrange driver with polypropylene cone relies on a particularly strong and responsive magnetic drive. Its streamlined design and the generous rear ventilation of the spider avoid compression effects and cool the extra-long voice coil under high continuous load. Due to the particularly wide and flexible diaphragm clamping with low fundamental resonance, the maximum linear excursion could be significantly increased compared to previous driver models, which enables a particularly profound and level-fixed bass reproduction. The total excursion of the woofer is almost three centimetres. Special design measures also prevent the diaphragm from "breaking up" at higher frequencies (keyword: partial vibrations), despite its robust suspension. In combination with the generously dimensioned cabinet volume, the nuBoxx B-40 achieves an impressive lower cut-off frequency of 41 Hertz at -3 decibels. Elaborate correction elements in the magnet system and further optimisations ensure a resonance-free frequency response and minimal distortion values in the critical midrange, right up to the coupling to the tweeter, which favours the use of this driver in a two-way design.
Crossover
The crossover separates the signal paths, linearises the driver systems and optimises the impulse and phase. As usual with Nubert, the circuit board is of above-average complexity and equipped with long-term stable film capacitors at the sound-critical points. A reliable protection circuit cuts off the amplifier current to the chassis and crossover in the event of an impending overload and then automatically resets itself to normal operation.
Connection terminal
All nuBoxx speakers are equipped with a completely redesigned connection terminal, which is precisely recessed in the lower area of the rear panel. The bi-wiring terminal of previous nuBox generations, which is rarely used in the entry-level class, has been replaced by two high-quality angled screw terminals with precision threads, which now also offer banana plugs a secure hold and an optimum contact surface.
