nuConnect ampXL
Available, delivery time: 1-3 working days *
€1,485.00
07171 87 12 0
Product
nuConnect ampXL
- Extremely powerful: Up to 340 watts per channel
- Maximally flexible: Compatibility with Google Chromecast, AirPlay 2, Spotify Connect, and Tidal Connect
- Highly connectable: From phono to digital inputs to wireless connection via Bluetooth
- Expandable: Wireless connection with additional Nubert components thanks to X-Connect
- Smart: App control and X-Room Calibration for effective optimization of the critical bass range
- Individual: Nubert Klangwaage, loudness function, 5-band equalizer, and Voice+
- Elegant: Black lacquered aluminum housing with OLED display
- Comfortable: High-quality remote control and intuitive operation

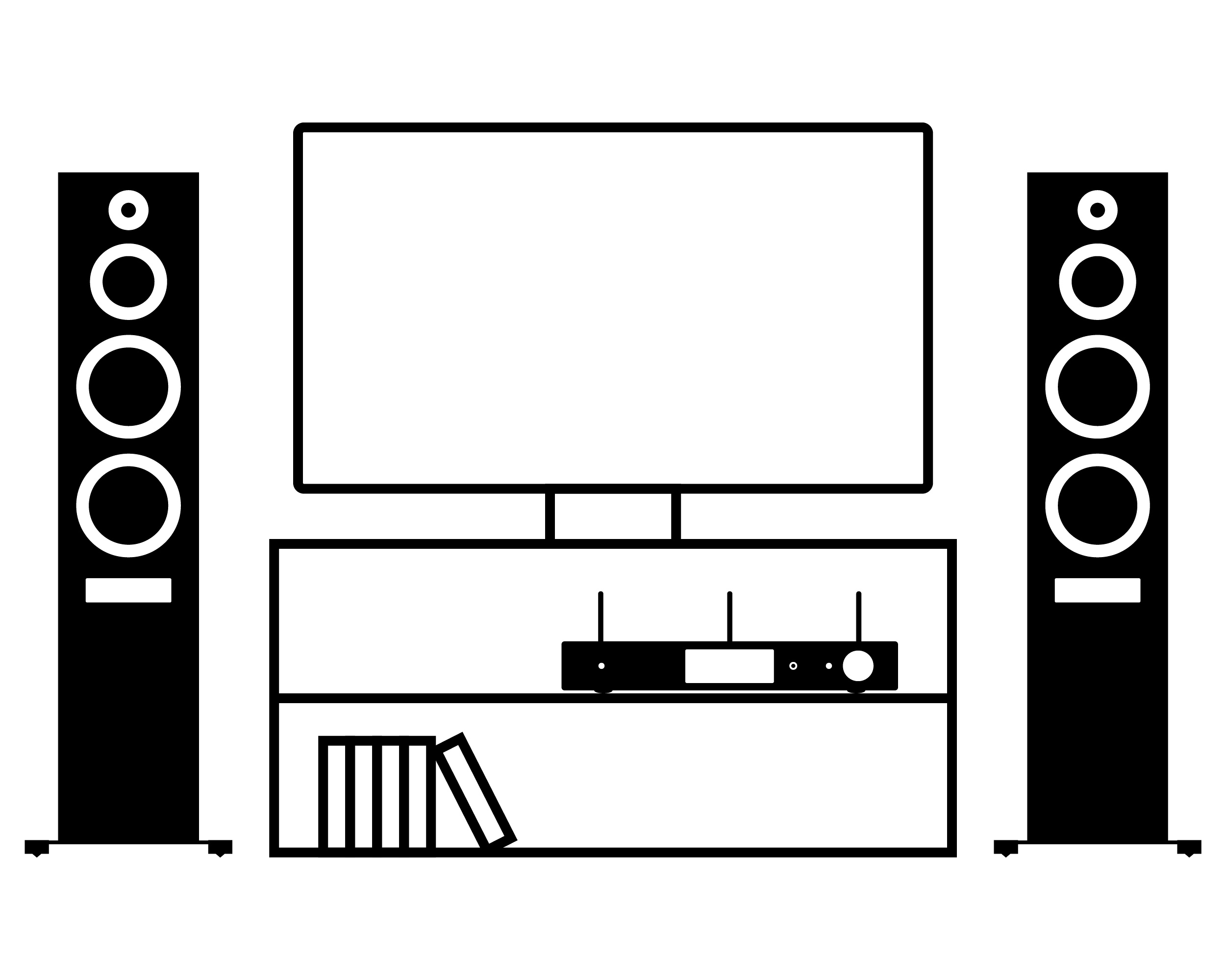

The wireless revolution in home cinema
The nuConnect ampXL is not just another streaming amplifier. It combines state-of-the-art streaming functions with innovative Nubert features, extensive connectivity options, and pure power capability. Up to 340 watts per channel are provided by the specially developed switching amplifier. Along with high-performance signal processing, the nuConnect ampXL unleashes impressive acoustic potential while simultaneously offering tremendous flexibility. In addition to Chromecast, AirPlay 2, Spotify, Tidal Connect, and Bluetooth, the nuConnect ampXL also provides connections for phono and PC. It is also compatible with Nubert X-Connect. Intuitive operation, X-Room-Calibration room measurement, and the elegant black lacquered housing with OLED display complete this powerful all-rounder.

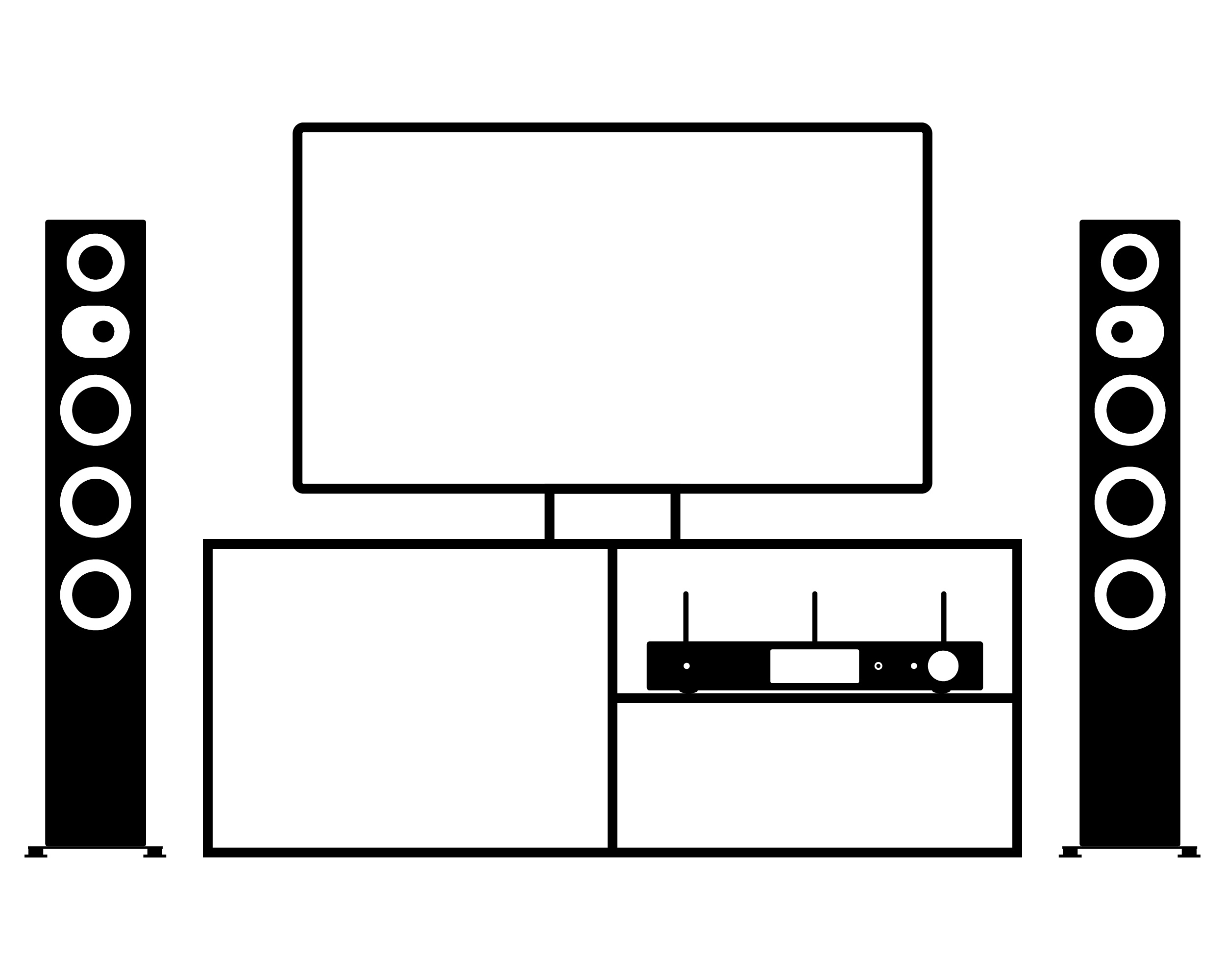

Sufficient power for large floorstanding speakers
The nuConnect ampXL with modern control options and high-quality signal processing offers all the prerequisites for an outstanding sound result - and decent power reserves even for the operation of large floorstanding speakers. It is therefore suitable for the entire Nubert range.
Connect nuPro XS speakers wirelessly
The nuConnect ampXL brings together 9 modern sources as a control centre and, in addition to WLAN, also supports our X-Connect Surround radio standard. In this way, for example, our active speakers of the nuPro XS series can be connected wirelessly to create a particularly elegant stereo system that can be flexibly expanded in the future.

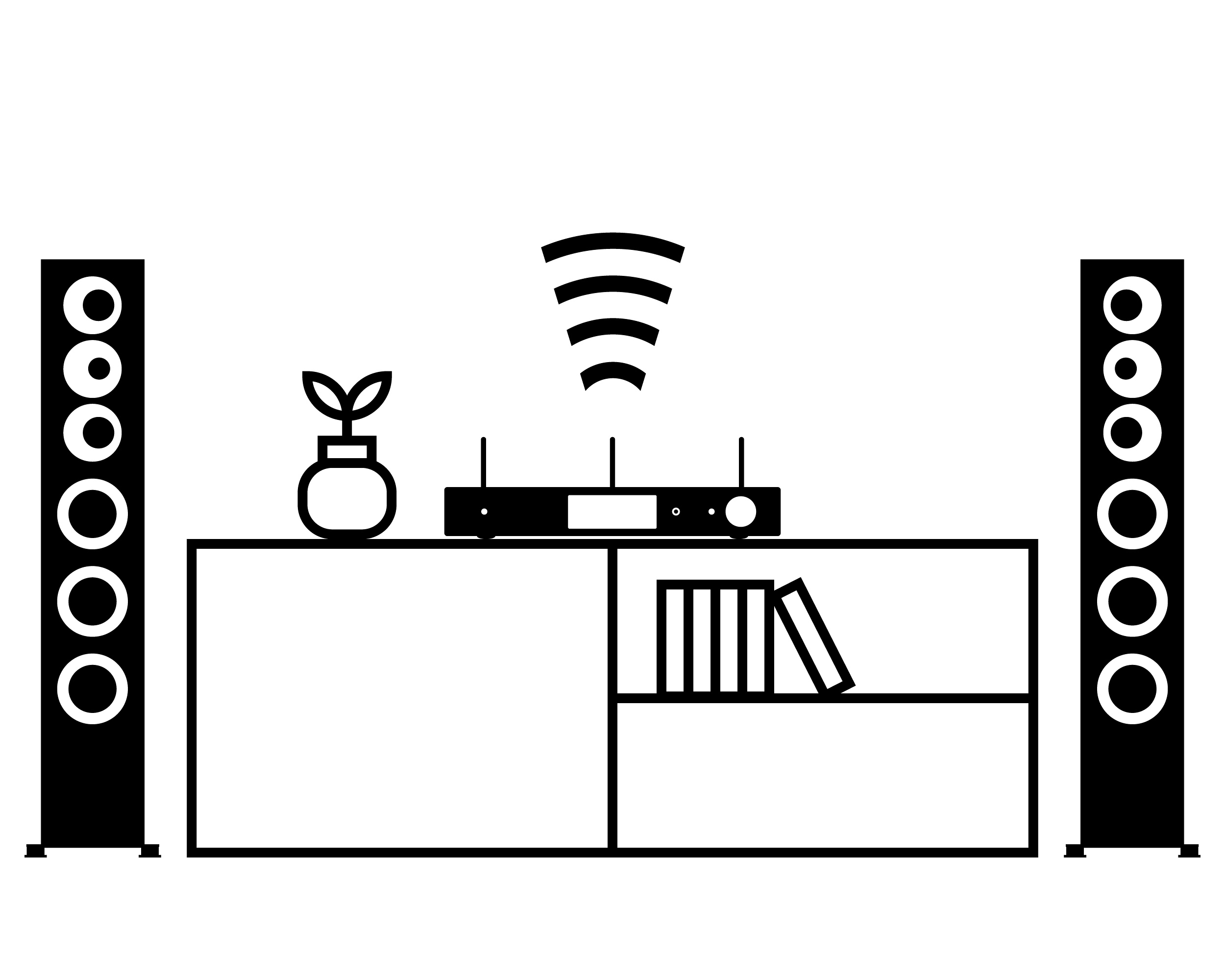

Boundless connectivity
With Apple AirPlay 2, Google Chromecast, Spotify Connect, and Tidal Connect, every user finds an easy way to connect.

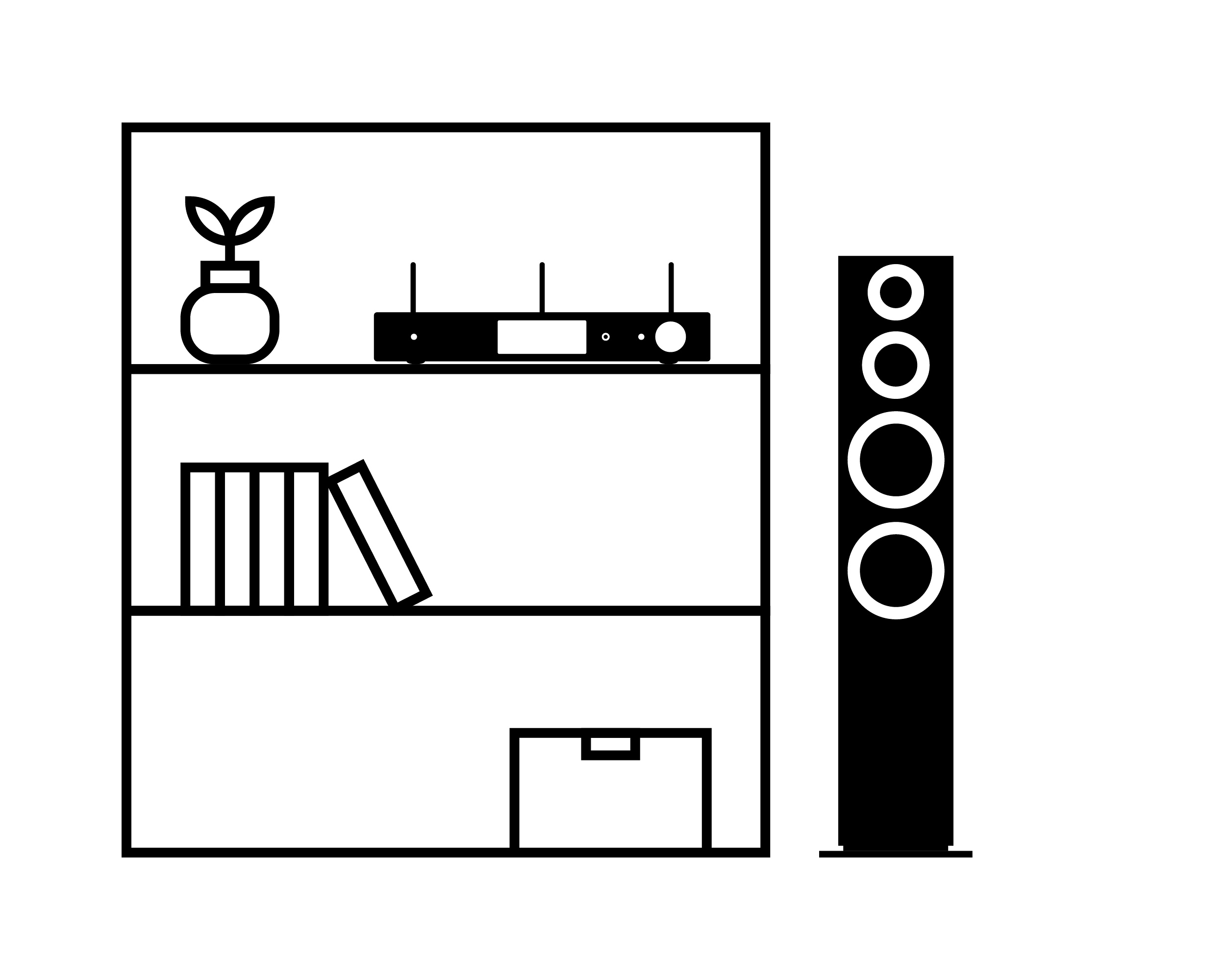

Amplifier for passive loudspeakers
The Nubert nuConnect ampXL is ideal for speakers of all sizes. All models benefit from the X-Room Calibration room measurement function via smartphone and the extensive sound control options.
Details
More power
The switching amplifier technology enables high performance and low power consumption. Thus, up to 340 watts per channel and a particularly high load stability are possible. The heat can be dissipated completely passively to the cabinet. Thus, it provides more than enough power even to supply full-grown floorstanding speakers such as the nuLine 334, nuVero 140 or even the nuVero 170. Your advantage: compact dimensions with high power and low heat generation.

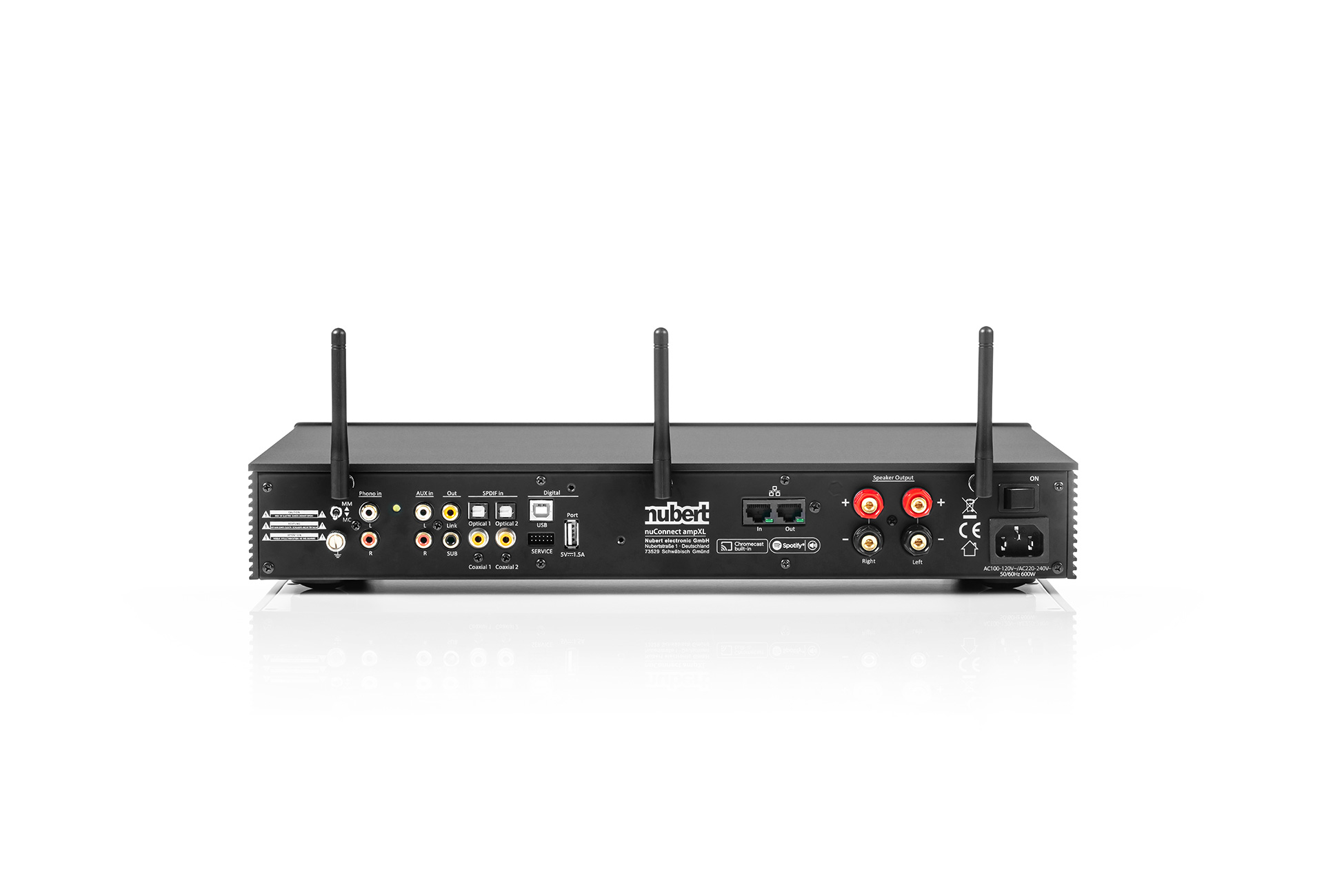

Connection diversity
The nuConnect ampXL manages the balancing act between a classic hi-fi amplifier and modern connections: From record players and digital inputs such as HDMI ARC to wireless connection via Bluetooth aptX HD and WLAN, a wide range of devices find their place on our new high-end amplifier. The ampXL is now ready for streaming services and the fully digital age. The wireless connection with X-Connect further expands the possibilities by either receiving or sending signals that are compatible with our active speakers of the nuPro X series. The coaxial output allows you to digitise records and the SUB-Out enables a 2.1 system.
Modern DSP technology
The heart of the nuConnect ampXL is the DSP: a digital sound processor that operates at 768 kHz and 32 bits for maximum precision. The completely digital mode of operation allows different settings to be made, all of which work in parallel without any loss of sound. Your advantage: Hi-Res processing at the highest level.
App control with X-Remote
The nuConnect ampXL comes with an ergonomic remote control with a metal surface. But the smartphone can also take over the control. Our Nubert X-Remote app works with the power-saving Bluetooth LE standard and provides access to all functions. Your advantage: full control at all times.

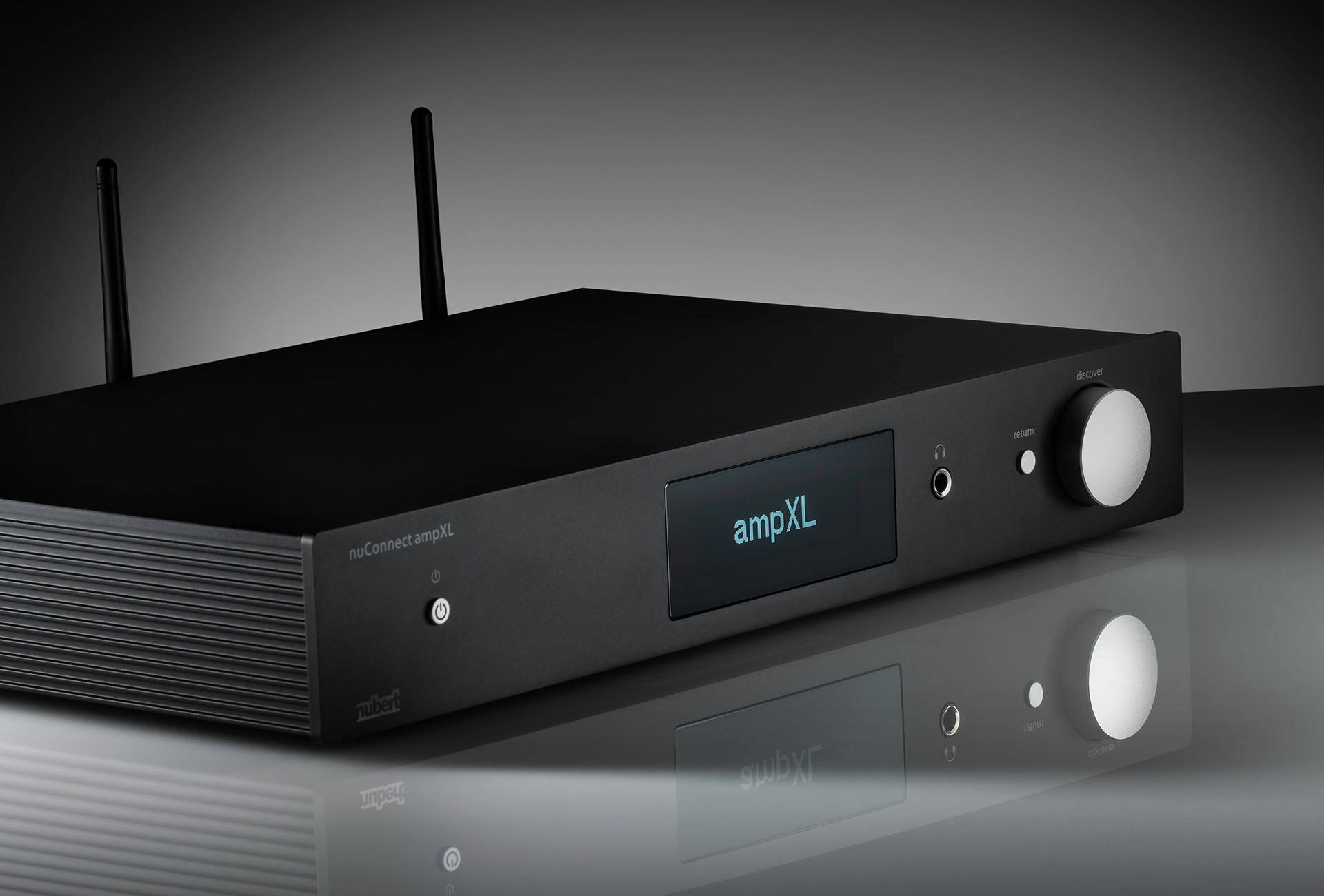

Colours and design
At 7.0 cm high and 43.0 cm wide, the amplifier is a very inconspicuous representative of its guild. More conspicuous is the OLED display, which is responsible for the information. The rotary control contrasts with the housing and is used to control the unit. The finish is classic black with silver accents. This puts the nuConnect ampXL in the tradition of its siblings nuControl 2 and nuPower D.
Nubert electronic GmbH
Nubertstraße 1, 73529 Schwäbisch Gmünd, Deutschland
Email: info@nubert.de Phone: +49 07171 - 8712-0
Safety Instructions
Before connecting and operating the device, it is essential to thoroughly read the user manual, especially its safety instructions. For your own safety, strictly observe all warning and safety instructions in this manual and on the speaker. The user is not allowed to perform any work on the speaker beyond the described operations. Keep this document accessible at all times, and pass it on to any future owners as well.
Intended Use
This speaker is exclusively intended for audio playback in dry indoor environments. Use the speaker only as described in this user manual. Any other use (especially safety-critical or medical applications, outdoor installation unless specifically IP-certified) is considered improper and may result in property damage or personal injury. Nubert electronic GmbH assumes no liability for damages resulting from improper use.
General Information
Never operate the speaker unattended!
Risk of Suffocation!
Never leave children unattended with the speaker or its packaging! Children could become entangled in the packaging film and suffocate. Ensure that children cannot remove small parts from the devices! These parts could be swallowed and pose a choking hazard. Contact a doctor immediately if any parts are swallowed!
Warning!
To avoid the risk of property damage, the speaker must not be opened by the user. There are no user-serviceable parts inside the speaker. Service and repairs must be performed by qualified professionals authorized by Nubert. For service cases, please contact Nubert electronic GmbH directly!
Warning!
If the speaker is operated while damaged, further defects may occur. If any of the following conditions apply, immediately take the speaker out of operation and contact Nubert electronic GmbH!
- The speaker has been damaged or has fallen.
- Objects or foreign substances have entered the device.
- The speaker emits a burning smell, smoke, or unusual noises.
Placement Instructions
Risk of Injury or Damage!
When moving the speaker, handle it with care to avoid injuries and damage!
Warning!
An unstable placement can cause damage to the speaker.
- Place the speaker only on a flat, stable surface and ensure it cannot be knocked over!
- Ensure that cables are not accidentally pulled to avoid toppling the speaker or damaging the connectors!
- Protect the speaker from strong mechanical shocks!
Warning!
Excessive heat buildup inside the device can shorten its lifespan or cause a fire. Heat exposure on the speaker surfaces may also cause damage.
- Do not operate the speaker near heat sources such as radiators or stoves!
- Do not expose the speaker to direct sunlight!
- Never place burning candles or similar open flames on the speaker!
Warning!
Moisture can cause damage to the speaker.
- Use the speaker only in a dry location!
- Do not operate it outdoors or in damp rooms!
- The speaker must be protected from all types of liquids, including dripping and splashing water.
- Do not place containers with liquids (e.g., flower vases) on or near the speaker!
- If the speaker is brought from a cold environment into a warm room, condensation may form inside the device. Wait at least 6 hours before turning it on to ensure it has acclimated to room temperature and is dry!
- Avoid using the speaker during rapid temperature changes!
Safety Instructions
Before connecting and operating the device, carefully read the user manual, especially the safety instructions. For your safety, strictly adhere to all warning and safety notes in this manual and on the device. The user must not perform any tasks on the device other than those described. Keep this document accessible at all times, and pass it on to any potential new owners.
Placement Instructions
Warning!
Since the device can only be completely disconnected from the power supply at the power input on the back or by unplugging the power cord, ensure that it is positioned so you have unrestricted access to the power input or plug. If any of the following conditions occur, immediately turn off the device and disconnect it from the power supply. Contact Nubert electronic GmbH (info@nubert.de)!
- The device is damaged or has fallen.
- The power cable or plug is damaged.
- Objects or liquid have entered the device.
- The device has been exposed to excessive moisture or rain.
- The device is not functioning properly or shows a significant performance drop.
- The device smells burnt, emits smoke, or produces unusual noises.
Use only accessories recommended by Nubert!
Placement Instructions
Warning!
An unstable placement can damage the device.
- Place the device on a flat, stable surface and ensure it cannot be knocked over!
- Ensure cables are not accidentally pulled to avoid toppling the device or damaging the connectors!
- Keep the device away from strong mechanical vibrations!
Warning!
Excessive heat buildup inside the device can reduce its lifespan or cause a fire.
- Never cover the rear of the device! Ensure at least 10 cm of free space and sufficient ventilation behind the device!
- Do not operate the device or remote control near heat sources such as radiators or stoves!
- Do not expose the device or remote control to direct sunlight!
- Never place burning candles or similar open flames on the device!
Explosion Hazard!
Improper placement can lead to explosions. Do not use the device or remote control:
- In fire or explosion-prone areas.
- At extremely low or high temperatures.
- Near flammable gases or vapors.
- In areas with heavy dust.
- Near easily combustible materials.
Risk of Electric Shock!
The device operates with mains voltage and voltages exceeding 35 V AC or DC inside. It is not specifically protected against liquid ingress or foreign objects. This poses a risk of fatal electric shock.
- Never touch the device with wet hands!
- Only use the device in a dry location!
- Do not operate the device outdoors or in damp environments!
- Protect the device from all types of liquids, including dripping and splashing water.
- Do not place containers with liquids (e.g., flower vases) on or near the device!
- If the device is brought from a cold environment to a warm room, condensation may form inside. Wait at least 6 hours before turning it on to ensure it is dry and at room temperature!
- Avoid using the device during rapid temperature changes!
- Ensure no objects or foreign substances enter the device.
- If the device comes into contact with liquids or objects enter the interior, immediately disconnect the power cord and contact Nubert electronic GmbH (info@nubert.de)!
Connection Instructions
General Connection Guidelines
- Unplug all system components before changing any wiring!
- Ensure all connections are secure and properly connected before powering the device!
- Only use designated cables and connectors for the connections. Improper usage may result in damage or malfunction.
- When disconnecting the speaker, always pull the plug, not the cable!
- Ensure all plugs are securely seated in the connectors!
- Use only cables and accessories recommended by Nubert!
Risk of Electric Shock!
Faulty power supplies or overvoltage can cause electric shocks.
- Ensure all power supply or antenna systems connected to the device comply with legal regulations and are professionally installed by licensed technicians.
- Use only the included power cable to connect the device. Do not modify the cable or plug.
- Verify that the mains voltage matches the device requirements. Refer to the specifications on the back of the device.
- Devices of protection class 1 must be connected to the protective earth conductor of the electrical installation. Ensure proper grounding at the installation site!
- Ensure power cables are not damaged (e.g., through heat or mechanical stress). Pay special attention to connectors and distribution points!
Remote Control and Battery
The product includes a remote control and a battery. Please observe the following:
- If the battery is depleted, the remote control's range will significantly decrease. Replace the battery promptly in such cases.
- Always use high-quality CR2025 lithium coin cells as replacement batteries.
- Ensure correct polarity when inserting the battery by aligning the + and − symbols in the battery compartment.
Warning!
Improper handling may cause damage.
- Do not drop the remote control!
- Keep the remote control and battery away from water and liquids!
- Do not operate or store the remote control and battery in high humidity or extreme temperatures!
Danger!
Leaking or exploding batteries can pose health risks and cause damage.
- If the device is unused for an extended period, or if the batteries are exhausted, remove the batteries to prevent discharge, leakage, or explosion.
- Replace leaking batteries immediately.
- If you encounter leaking batteries, do not touch the leaked material. Dispose of the batteries immediately!
- Avoid contact with leaking batteries!
- If leaked material comes into contact with skin, eyes, or mouth, rinse the affected area with water and contact a doctor immediately!
Risk of Internal Chemical Burns!
Swallowing batteries can cause severe internal burns within a short time and may be fatal.
- Ensure that batteries cannot be ingested or inserted into any body part!
- Keep new and used batteries out of reach of children.
- If the battery compartment does not close securely, stop using the product and keep it away from children.
- If you suspect that a battery has been swallowed or inserted into the body, seek medical attention immediately!
Care and Cleaning Tips
Warning!
Improper handling of the device may cause damage.
- Always unplug the device before cleaning!
- Clean the device regularly with a soft, slightly damp cloth. For stubborn stains, use mild soapy water.
- Never use abrasive cleaning agents or solvents such as gasoline or alcohol!
- Before restarting, ensure all connections are correct, no short circuits exist, and the device is completely dry.
Accessories
We don't just create exceptional speakers and electronics; we also offer the right accessories. From cables to adapters, you'll find everything useful for our products.
Attention to Detail
With us, you won’t find off-the-shelf electronics, but always products with that special something. This includes unique surface textures and innovative concepts that make our HiFi devices truly special. We add nothing to the signal and take nothing away. That’s why you won’t find amplifier coloration with us, only linear reproduction without any gimmicks.
Nubert Offers More
We develop all nuElectronics models in Schwäbisch Gmünd. From the housing to the drivers and sound tuning, every detail is optimized by our engineers. Once mass production begins, our in-house quality management kicks in. We inspect the design, technology, and sound to ensure you receive the best possible product. If you have any questions, give us a call, and our customer service team will assist you. Their years of experience and thorough training ensure quick and hassle-free support.
X-Remote App
With the Nubert X-Remote app, many functions can be conveniently controlled from your smartphone. In addition to the typical controls for volume and system status, the app allows precise sound adjustments – even using our X-Room Calibration feature on iOS. The app is available for free on the Google Play Store for Android and the Apple App Store for iOS.
Test results
We are awarded. And proud of it.
Wucht im Schafspelz
lite Best Picks Award 2024
The best stereo receivers
Bärenstarker Vollverstärker
Modellathlet mit unfassbarer Leistung
Accessories
We not only build exceptional loudspeakers and electronics, but also offer the matching accessories. So you can find everything useful for our products, from cables to adapters.
Content: 0,75 Meter (€93.33 / 1 Meter)
Our recommendations
Not the right one? We recommend taking a look at related products that you might like.
Downloads
Reviews
Login
Honest speakers - Honest reviews
Satisfied? Or can we do something better with our products? Then write us your review. Simply log in to your account and write the review of your order here.
Here with us, every review is checked for authenticity and is then approved. So you can be sure that the feedback you give us about our products is genuine.
25 June 2024
Bin begeistert - Perfekter Klang und nun auch mit TIDAL - Spitze
Nach langem Suchen, Vergleichen und Überlegen habe ich mir vor einem guten halben Jahr den nuconnect ampXL zusammen mit einem Paar nuVero 140 gekauft. Und ich bin sowas von begeistert von dem Klang der beiden Nuberts. Das war eine meiner besten Investitionen. Schon beim Probehören in Schwäbisch Gmünd hat mich das Zusammenspiel der beiden Komponeten überzeugt. Nachdem ich nicht unbedingt der bin der die Musik voll aufdreht, brauchte ich eine Kombi, die auch bei Zimmerlautstärke einen guten Klang rüberbringt. Deshalb auch die Kombi mit dem „kleinen“ Verstärker und der großen Box - was soll ich sagen - es harmoniert wunderbar. Primär höre ich Rock, Pop und ab und zu Klassik - und alles klingt sowas von überzeugend und stark. Bass bis in die tiefsten Tiefen - Subwoofer definitiv nicht notwendig - und ein sauberer Klang in den Mitten und Höhen - der selbst in bekannten Stücken immer wieder neues entdecken läßt. Ich nutze die RoomCalibration und bin auch hier begeistert und überzeugt von die Klangverbesserung in meinem Hörraum (30 qm). Üblicherweise werden ja alle Tests in einem „neutralen“ Testraum gemacht, den wohl kaum jemand zu Hause hat. Bisher hatte ich über einen BlueSound Node Musik meist in HighRes gehört - und ab heute kann es der ampXL dank Softwareupdate direkt über Tidal Connect - und es klingt nochmal eine Stück besser. Also 5 Sterne mit Auszeichnung für den Verstärker. Hatte bisher 2 Fragen an den Support per Mail gestellt - und auch hier ist Nubert Spitze - innerhalb kurzer Zeit hatte ich die passende und voll zufrieden stellende Antwort. Auch dafür 5 Sterne!
21 February 2024
Super!
Betreibe den nuConnect ampXL zusammen mit unseren Revox Prestige 02 und dem Nubert Subwoofer AW-443. Nach nun fast drei Monaten (und diversen Feineinstellungen via Nubert-App) bin ich mehr als zufrieden, das Teil liefert wirklich - viele Musikstücke geben Details her, die mir völlig neu sind. Höre Progressive Rock, stressfreien Jazz und Musik aus Klaus Schulzes Dunstkreis, in allen drei Genres leistet der ampXL erstaunliches, auch bei ziemlich hoher Lautstärke. Sehr detailreich, starke Trennung der einzelnen Instrumente und klare Darstellung. Whow! (Nutze mein 2.1-Setup auch für Filme, auch bei z.B. Interstellar mit Musik von Hans Zimmer: grandios!) Vielen Dank!
11 December 2023
Kraftpaket
Habe nach langem hin und her auf den Bestell-Button gedrückt...,und dass war auch gut so. Warum? Ich habe einen kompakten Verstärker/Streamer mit genug Leistung gesucht und gefunden. Laut spielen ist das eines, aber er kann auch sehr fein und detailliert, dass hätte ich so nicht gedacht. Ich streame über Chromecast ( deezer ) und habe auch einen Plattenspieler über MM angeschlossen, dieser klingt über den nuconnect ebenfalls wirklich Klasse. Über den HDMI Adapter ( separat erhältlich )habe ich den TV angeschlossen, daran meine Passiv Lautsprecher, funktioniert sehr gut und ersetzt die Soundbar. Klang top, Installation einfach, Optik Klasse, Preis / Leistung mehr als gegeben. Für mich hat sich die Anschaffung gelohnt.
1 August 2023
Top mit kleinen Abstrichen
So, dann werde ich mal meine subjektiven Eindrücke zum Klang schildern. Der Nubert ist angeschlossen an ein Paar Dynaudio Emit 30. Zum Vergleich steht hier mein ein Jahr alter Marantz Model 40n. Bevor sich jemand beschwert, ja ich weiß der ist um Längen teurer und hat ein anderes Konzept. Dafür hat dieser auch einen HDMI Eingang. Warum ich diesen als Adapter beim Nubert dazukaufen muss, erschließt sich mir nicht so ganz, zumal dieser beim billigeren AmpX mit dabei liegt. Verarbeitung vom Nubert sehr gut, kann aber natürlich an den Marantz nicht rankommen. Der Marantz Made in Japan, Nubert AmpX China. Die Einrichtung von Chromecast ist grausam. Die Heos Geschichte bei Marantz ist relativ einfach dagegen. Bei Chromecast musste ich erst Google Home runterladen, dann noch DS Audio um Dateien von der NAS abzuspielen. Bis man da erst an seine Dateien kommt ist in meinen Augen zeitaufwändig. Aber Gut letztendlich hinbekommen, läuft. Nun zum Klang. Erstmal wie gefordert eingemessen. Laut Kurve hat das angeblich was gebracht. Im Vergleich klingt es etwas anders. Groß war der Unterschied allerdings nicht. Ich habe mir ein paar Musiktitel angehört, von denen ich glaubte ich kenne sie. Ähm, nein. So nicht. Der Nubert bringt Details zum Vorschein, die ich vorher nicht gehört habe. Der Marantz ist sehr gut, keine Frage, aber mir kam es bei manchen Titeln so vor, als ob er gewisse Sachen nicht reproduziert. Stimmen wurden in den Vordergrund gestellt, der Rest der Musik spielte irgendwie im Hintergrund. Schwer zu erklären. Beim Leisehören kam das sogar noch mehr zum tragen. Der Nubert hingegen erweckt selbst meine Mittelklasse Lautsprecher zum Leben. Es sind Details hörbar, die der Marantz, rein subjektiv, unterschlagen hat. Dafür klang der Marantz etwas wärmer. Drückte aber im Gegensatz zum Nubert beim Bass nicht so. Geschmacksache. Egal ob man Laut oder leise hört. Die Integration der Loudness Funktion ist gelungen. Heute Mittag mal kurz einen Film laufen lassen. Voice+ sehr gut integriert.
Technical information
| Device type: | Digital integrated amplifier |
|---|---|
| Width: | 43,0 cm |
| Height: | 7,0 cm |
| Depth: | 27,1 cm |
| Depth (additional information): | 31,7 cm (with connections and select dial) |
| Weight: | 6,0 kg |
| Power consumption in standby mode: | 0,7 W |
| Standard colour: | Black |
| Color: | Black |
| Scope of delivery: | nuConnect ampXL, 3 wireless antennas, mains cable 1.8 m, remote control + battery, SPDIF coaxial cable 3 m, stereo jack cinch cable 1.5 m, optical digital cable 1.5 m, USB cable 1.5 m |
| EAN / GTIN: | 4260166757187 |
| Country of origin: | China |
| WEEE-Reg. No.: | DE 48888173 |
| Min - Max impedance: | 2-8 Ohm |
| Continuous power: | 340 W per channel |
| Pulse power: | 510 W per channel |
| Channels: | 2 |
| Power amplifiers: | 2 |
| Remote control: | IR remote control |
| App control: | Nubert X-Remote |
| Operation on the device: | Rotary control |
| Digital coaxial inputs: | 2 |
| Digital optical inputs: | 2 |
| USB inputs: | 1x USB type B |
| Bluetooth: | Yes |
| AirPlay: | Yes |
| ChromeCast: | Yes |
| Spotify Connect (WiFi, RJ45): | Yes |
| Phono input: | 1 (MM / MC) |
| Audio cinch inputs: | 1 |
| Digital coaxial outputs: | 1 |
| USB outputs: | 1x USB type A (power port) |
| Subwoofer: | 1 |
| Bluetooth codec: | aptX HD, aptX Low Latency, AAC, SBC |
| Nubert X-Connect: | Send / Receive |
| Bass/treble control: | Nubert sound control |
| Loudness: | adaptive |
| Sound broadening: | Wide Sound |
| Calibration system: | X-Room Calibration |
| Equaliser: | 5-band graphic equaliser |
