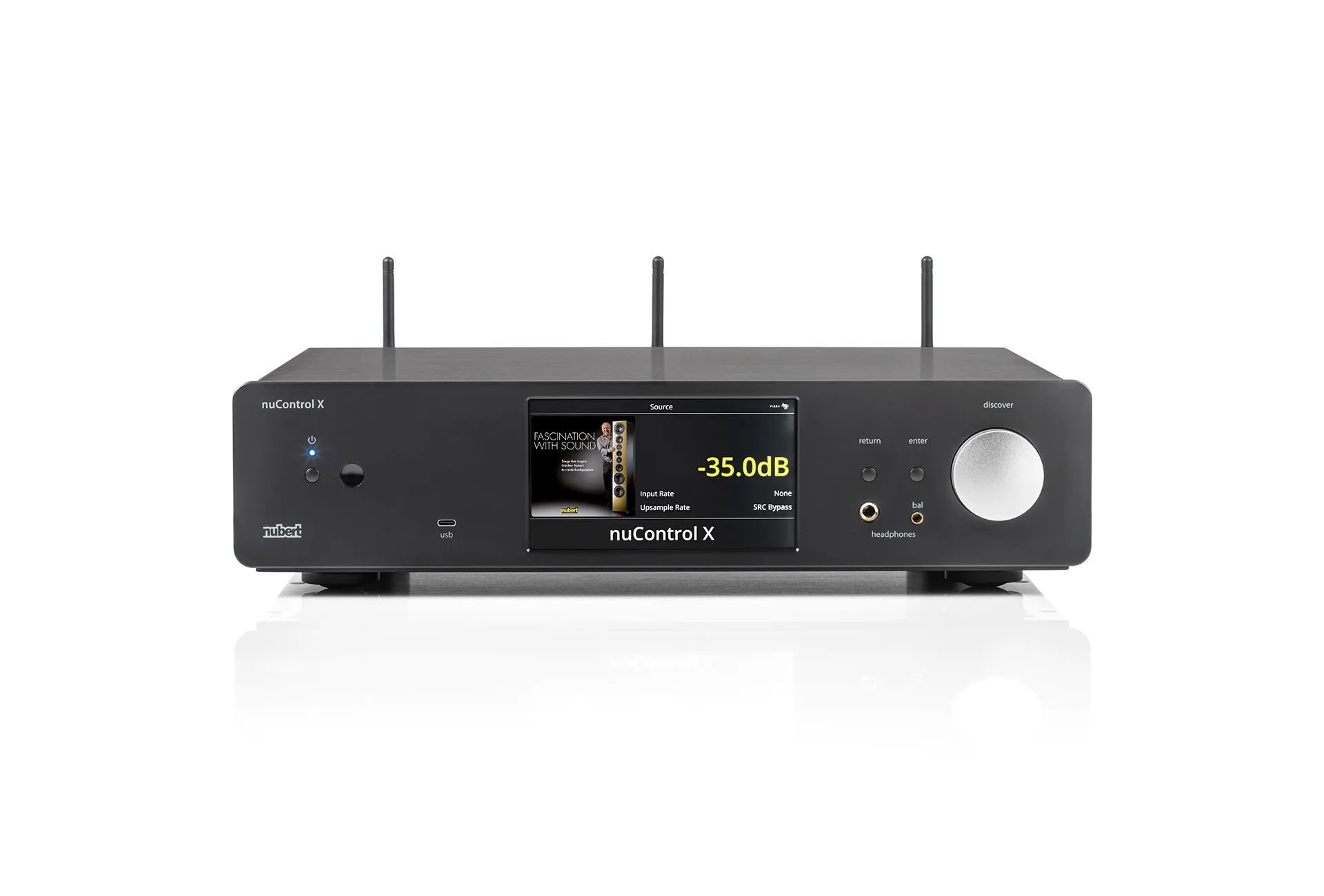

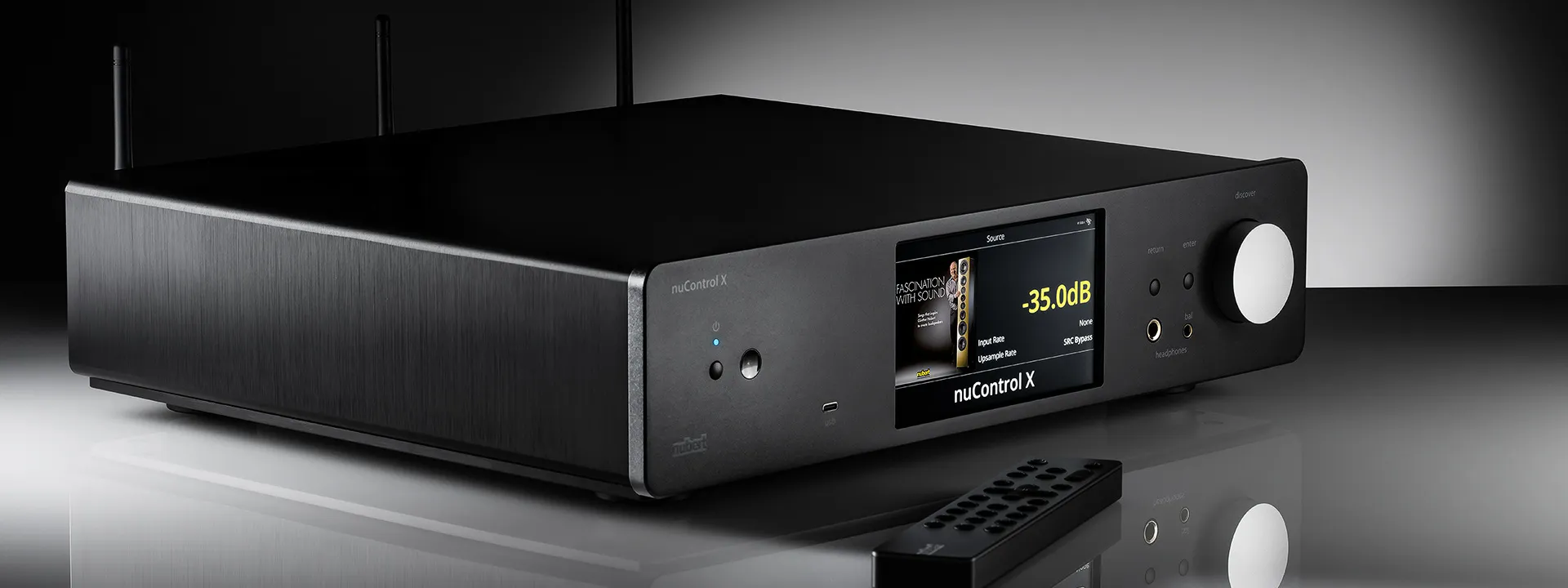

nuControl X
Available, delivery time: 1-3 working days *
€4,490.00
07171 87 12 0
Produkt
nuControl X
- Powerful: Ultra-fast IMX8 processor with graphical support
- Tone-responsive: 7-band fully parametric equalizer, variable high-pass, dynamic loudness, Nubert sound balance, room calibration
- Connecting: AirPlay 2, Roon Ready, Spotify Connect, Amazon Music, Qobuz, Tidal
- Convenient: WLAN and Bluetooth with aptX HD/LL and AAC support integrated
- High End: Native DSD512 for maximum, unadulterated signal purity
- Progressive: Premium ESS DACs with handling of up to 768kHz/32-bit
- Individual: X-Room Calibration Advanced room calibration and high-end bass management
- Elegant: High-quality aluminum housing with operation via 4" touchscreen display
Setting new standards
With the nuControl X, Nubert's engineers have raised the bar. Streamer, preamp and DAC come together here, but the component is much more than that. With high-end signal processing, a parametric 7-band EQ and incredibly extensive customization options, top sound is guaranteed in every situation. The crowning glory is the advanced "X-Room Calibration Advanced" calibration. Intuitively and without prior knowledge, the nuControl X is perfectly tuned to your own room. Of course, nothing is missing from the interfaces either. In addition to the typical RCA and XLR connections, there is also a sophisticated phono MM/MC stage. AirPlay 2, Roon support and Bluetooth ensure that even streaming enthusiasts have everything they need.
Stereo High End
The nuControl X really comes into its own in a classic stereo setup: Thanks to the generous calibration, the acoustics of the room can be individually adjusted. This allows your music to come into its own.
Upgrade for active sound
The nuControl X can even control active loudspeakers. Via X-Connect, all sound settings are available in high resolution without additional signal conversion. This means that "active" speakers can also be driven for the best possible sound reproduction.

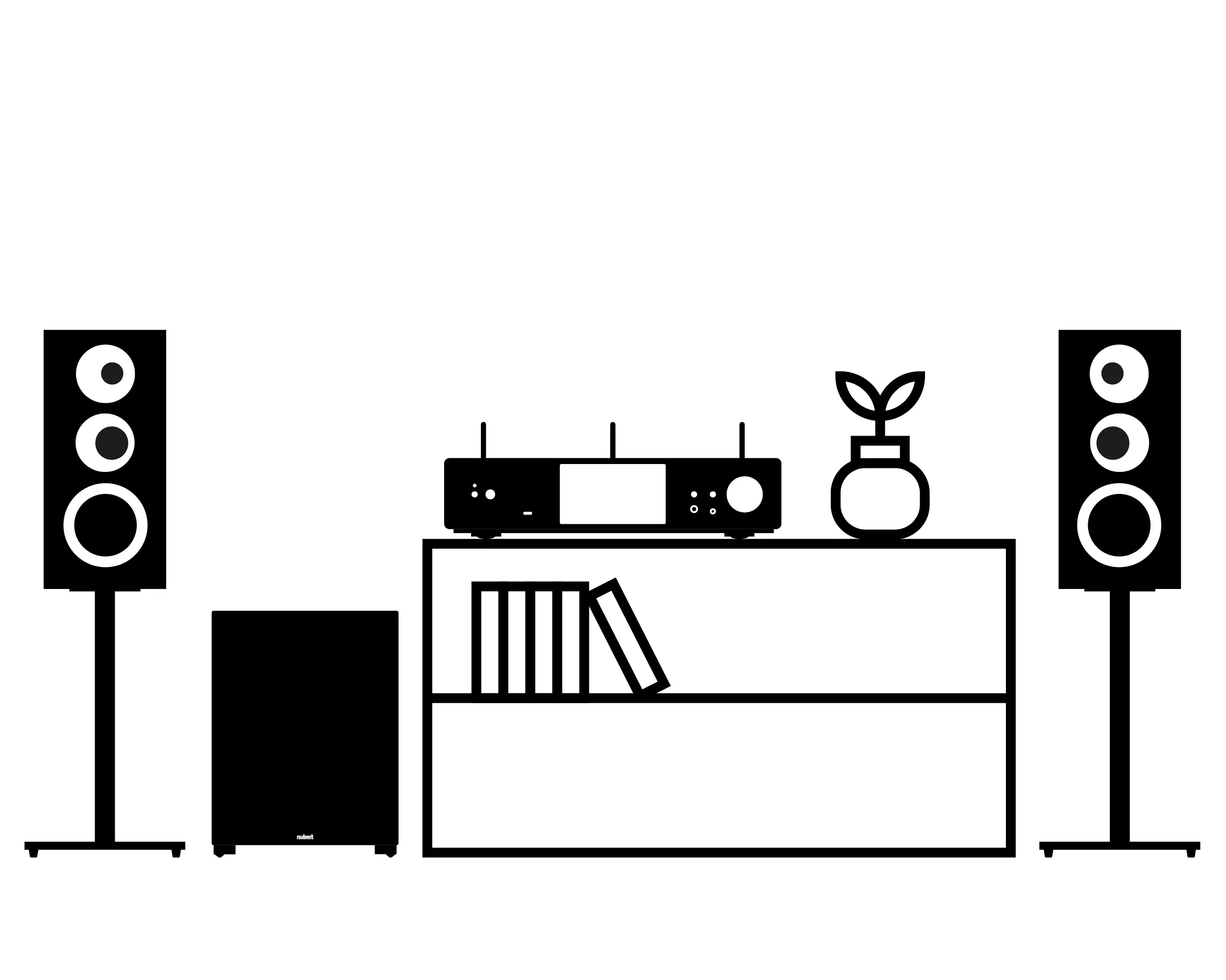

Deep bass perfectly integrated
Even without a subwoofer, the X-Room Calibration Advanced calibration function optimally adjusts the bass and details can be heard precisely. If subwoofers are to be integrated into the speaker setup for even more bass performance, options such as parametric equalizers, time offsets, high and low pass offer precise adjustment.
Wireless makes it flexible
Easy set-up without tangled cables - no problem with the nuControl X. With WLAN, Bluetooth aptX HD/LL as well as AAC and X-Connect, it supports all common wireless standards and thus offers the best possible variability in your room.
Details
High-end preamplifier
Delivering the input signal to the power electronics with absolute signal purity is the top priority for a high-quality preamplifier. With its first-class D/A and A/D conversion, audiophile design and carefully selected components, the nuControl X offers first-class prerequisites for this. A particularly sophisticated tone control is also integrated.
Variety of connections
With numerous digital and analog interfaces, the nuControl X offers enormous flexibility. In addition to conventional RCA connections, XLR and AES/EBU are also available. A PC/Mac or RasPi can be connected directly via USB-B and the preamp also has a phono input (MM/MC) for vinyl enthusiasts.
Flexible networker
The nuControl X is extremely flexible when it comes to networking and streaming. WLAN or cable-based, access to almost all relevant music streaming services, compatibility with Roon and other local servers as well as playback from HDD or USB stick are all included. Galvanic isolation of the network connections ensures perfect sound.
Award-winning design language
The elegant, minimalist design seamlessly continues the line of the nuPower amplifiers. The 1 cm thick front panel and the control knobs are made of glass bead blasted, anodized aluminium. The housing and base are made of solid, brushed and anodized aluminium. The exclusive concept is completed by resonance-absorbing feet.

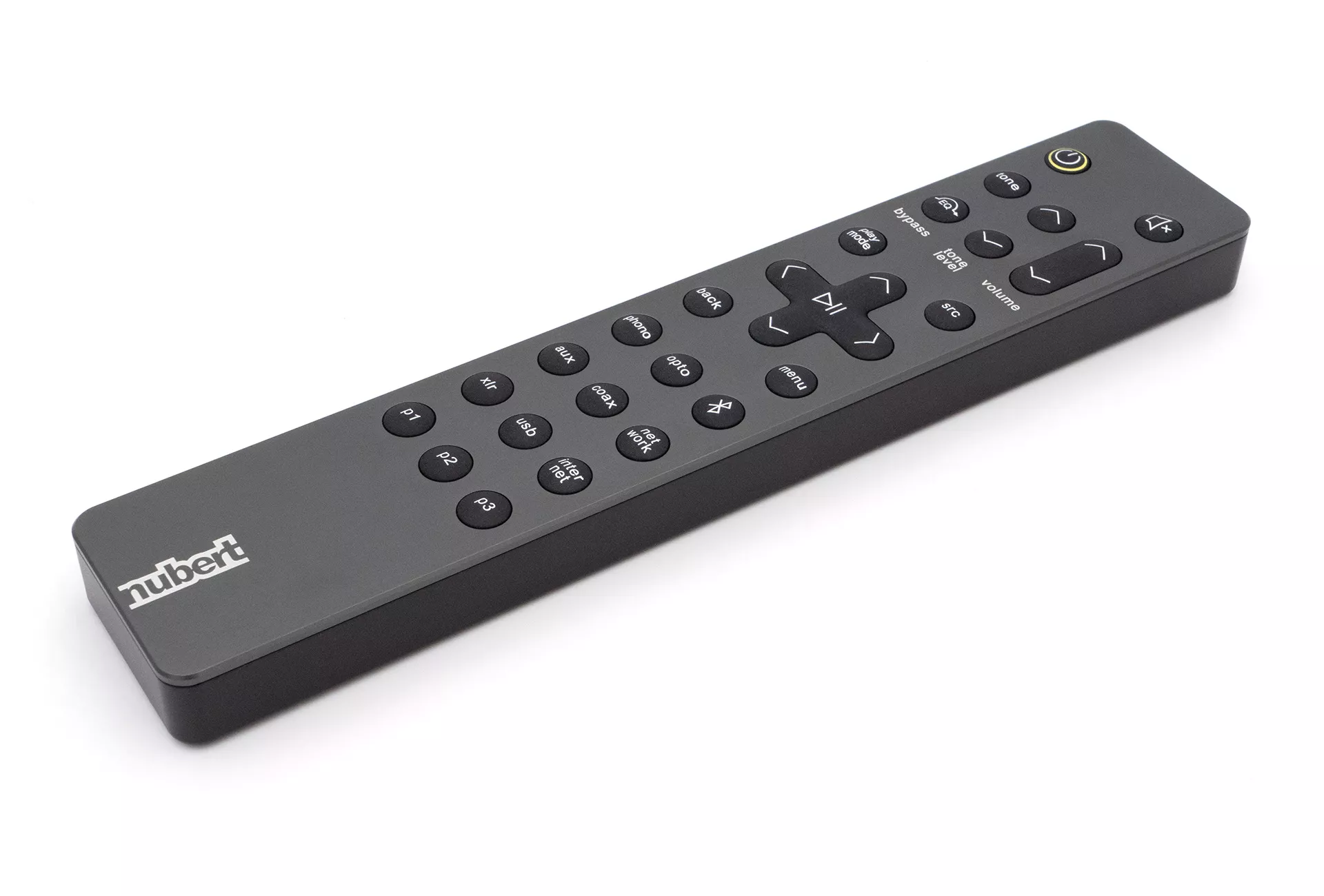

Noble control from a distance
The nuControl X can also be operated from a distance. The scope of delivery includes an infrared remote control made of fine aluminum in solid quality, which is extremely comfortable to hold. Direct access to sound controls, volume, sources, presets and the menu is quick and convenient.
Touch screen
The high-resolution 4" color display enables intuitive operation directly on the device. With perfect readability in every situation, the display provides the user with all the important information in a clearly arranged manner and accepts commands. The nuControl X app also allows access to all this information and functions from the listening position.

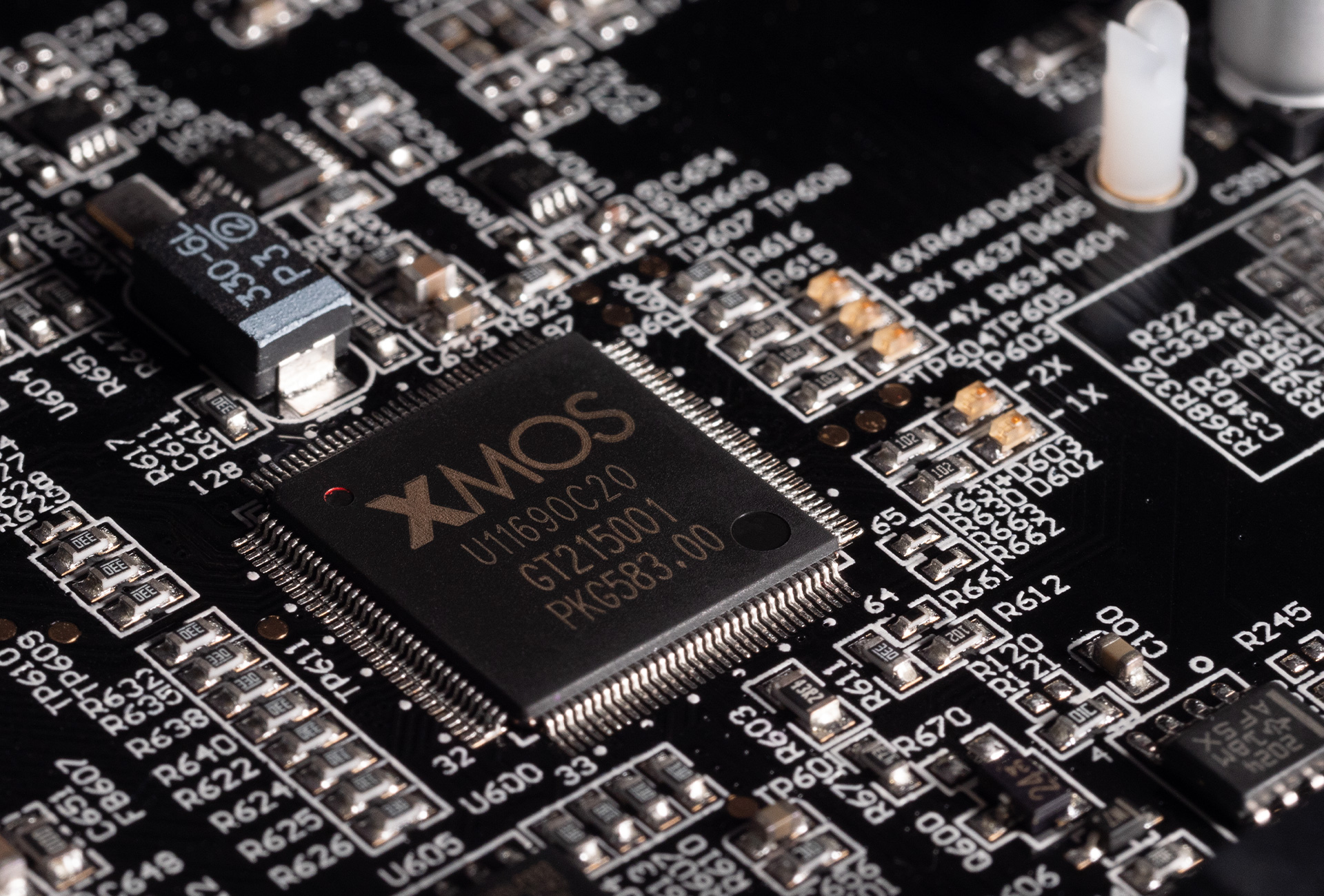

32-bit converter chain
Absolute signal purity is guaranteed by the nuControl X's complete 32-bit signal chain with audiophile ESS 9038 PRO converters. This ensures maximum precision signal processing up to DSD512 and 768kHz/32-bit for the highest demands. Upsampling is freely selectable with the nuControl X preamp.

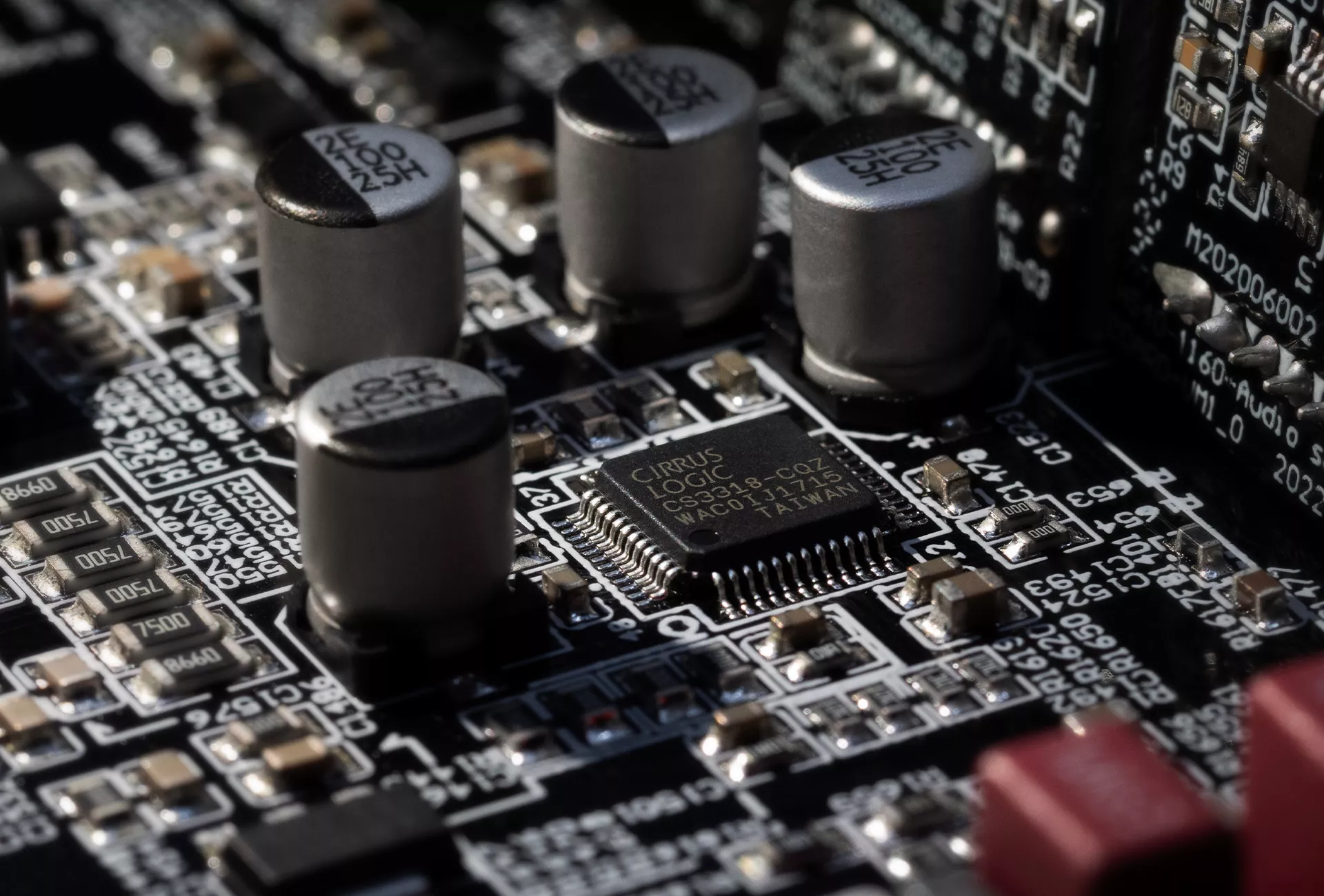

Maximum signal purity
To guarantee optimum signal purity, the nuControl X has completely separate analog and digital sections. A separate power supply unit also documents this independence. The analog volume control via the digitally controlled Cirrus CS3318 also ensures perfect sound.
Head-Fi
Maximum sound potential and high flexibility go hand in hand with the nuControl X. Headphones can be connected wirelessly via Bluetooth (incl. aptX HD) or wired. Both a 6.3 mm jack connection and a balanced jack connection (4.4 mm) are available for the cable connection. High-quality headphone amplifiers from Texas Instruments are used.
Vinyl expert
No compromises when enjoying vinyl via the nuControl X: thanks to premium phono preamplifiers on a separate circuit board, a sophisticated, shielded audio section and ultra-short signal paths with direct digitization, noise is effectively minimized. Every facet, every nuance of the precious vinyl treasures comes out vividly and clearly.

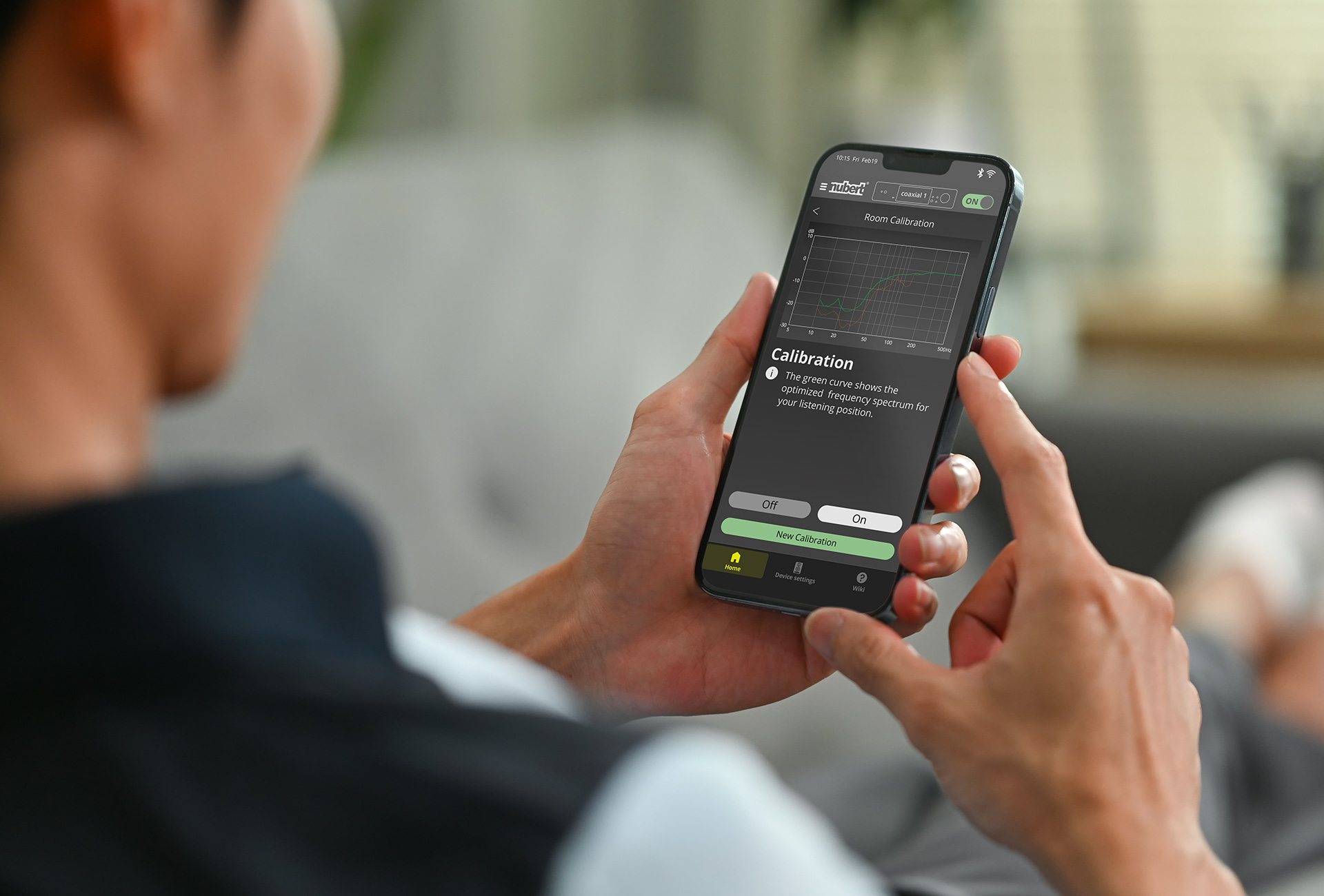

Room correction 2.0
X-Room Calibration Advanced is an automatic, app-based calibration/room EQ system for iOS and Android devices (for the latter with optional interface) that enables room correction at the highest level. No more booming in the bass/ground tone range, more resolution + dynamics than with the previous system. Control range: -40dB to +18dB at 20 to 300 Hz.
The best for the bass
Low and high-pass filters with variable slope/quality enable seamless adaptation to the front speakers. A frequency response that can be manually optimized via bass EQ to effectively combat room modes is also part of the bass management. Plus 4 separate delay settings for front speakers and subwoofer - for perfect timing.
The sound in your hands
Automatic loudness with aurally accurate sound adjustment, the Nubert sound balance for harmonious acoustic tuning to the listener's taste and a fully parametric EQ for highly detailed adjustment leave nothing to be desired.
Nubert electronic GmbH
Nubertstraße 1, 73529 Schwäbisch Gmünd, Deutschland
Email: info@nubert.de Phone: +49 07171 - 8712-0
Safety Instructions
The entire operating manual, in particular the safety instructions, must be read in full before connecting and commissioning the device. For your own safety, be sure to follow all warnings and safety instructions in this manual and on the device. The user is not permitted to carry out any work on the device other than the described work. Keep this document so that you have access to it at all times. Furthermore, it must also be handed over to possible re-owners.
Intended Use
This device is designed exclusively for sound reproduction in dry rooms. Use the device only as described in this manual. Any other use (particularly safety-relevant or medical use, installation in open environments like IP-certified products) is considered improper and may result in property damage or even personal injury. Nubert electronic GmbH does not assume any liability for damages caused by improper use.
General Information
Never operate the device unattended!
Danger of Electric Shock!
To avoid the risk of electric shock, the device may not be opened by the user. There are no user-serviceable parts inside the device. Service work and repairs are reserved for qualified specialists authorized by Nubert. If you need service, please contact Nubert electronic GmbH directly (info@nubert.de)!
Danger of Suffocation!
Never let children use or play with the device, remote control, or packaging unattended. There is a risk that children will get caught in the packaging film and suffocate. Make sure that children cannot remove any small parts from the devices! These parts, like the remote-control battery, could be swallowed and cause suffocation. In case of swallowing any parts, contact a doctor immediately!
Danger of Injury or Damage!
When moving the device, take care to avoid injury and damage!
Caution!
Since the device can only be completely disconnected from the mains at the mains input on the rear of the unit or by pulling the mains plug from the socket, it must be positioned so that you have free access to the mains input or mains plug. If any of the following situations occurs, the device must be switched off immediately and disconnected from the mains. Contact Nubert electronic GmbH (info@nubert.de) immediately:
- The device has been damaged or has fallen down.
- Power cord or plug is damaged.
- Objects or liquid have gotten into the device.
- The device has been exposed to excessive moisture or rain.
- The device does not work properly or exhibits a significant reduction in performance.
- The device smells burnt, develops smoke, or makes unusual noises.
Only use accessories recommended by Nubert!
Installation Instructions
Caution!
An unstable location can damage the device.
- Only place the device on a flat, stable surface and make sure that it cannot be knocked over!
- Also make sure that no unintentional pulling can occur on the cables to avoid knocking over the device or damaging the connection sockets!
- Keep strong mechanical shocks away from the device!
Caution!
Excessive heat build-up inside the unit can shorten its service life or lead to fire.
- Never cover the device! Make sure that there is a clearance of at least 10 cm and sufficient air circulation around the device!
- Do not operate the device and remote control near heat sources such as radiators or stoves!
- Do not expose the device and remote control to direct sunlight.
- Never place burning candles or similar open fire sources on the device!
Danger of Explosion!
Installation in unsuitable locations can cause explosions. Do not use the device or remote control:
- in environments where there is a risk of fire or explosion!
- at extremely low or extremely high temperatures!
- near flammable gases or vapors!
- near strong dust!
- near flammable materials!
Danger of Electric Shock!
The device carries mains voltage and voltages higher than 35 V AC or DC inside. It has no special protection against the intrusion of liquids or objects into the system. There is therefore a risk of lethal electric shock.
- Never touch the device with wet hands!
- Only use the device in a dry place!
- Do not operate it outdoors or in damp rooms!
- The device must be protected from liquids of all kinds, including dripping and splashing water.
- Do not place any containers containing liquids (e.g., flower vases) on the device or in the immediate vicinity!
- If the device is moved from a cold environment to a warm room, condensation may form inside the unit. Wait at least six hours until the device has reached room temperature and is dry before switching it on!
- No objects of any kind may get into the device.
- Should the device come into contact with liquids or should objects have gotten inside, please unplug the mains plug immediately and contact Nubert electronic GmbH (info@nubert.de)!
Connection Instructions
General Connection Instructions
- Disconnect the mains plug before changing any wiring on the system!
- Make sure that all connections have been made correctly and that all plugs are firmly seated in the sockets before connecting the device to the mains.
- Use only the intended cables or plug connections for the connections! Failure to do so may result in damage or malfunction.
- If you want to disconnect connections on the device, always pull the plug, never the cable!
- Ensure that all plugs are firmly seated in the sockets!
- Only use cables and accessories recommended by Nubert!
Danger of Electric Shock!
Faulty mains supply systems or excessive mains voltage can lead to electric shocks.
- All power supply or antenna systems connected to the device must comply with all applicable laws and regulations and be professionally installed by an approved installation company.
- Use only the appropriate power cord to connect the device. Do not modify the power cord or its plug.
- Make sure that the mains voltage at your location matches the requirements of the device! The correct power supply can be found on the label on the back of the device. It must not be connected to other power supplies.
- Devices of Class 1 construction must be connected to the mains power socket outlet with a protective earth connection. Make sure that the installation of the protective earth is carried out correctly!
- When laying the power cables, make sure that they cannot be damaged (e.g., by heating or mechanical stress)! Pay particular attention to the areas of the connectors and distributors!
Caution!
Overvoltage in the power supply system (e.g., due to lightning) can damage or destroy the device and power supply unit.
- An overvoltage protection element can provide a certain degree of protection against excessively high voltages in the power grid.
- However, the greatest possible protection against damage can only be achieved with the complete separation from the mains supply. In case of thunderstorms or danger of lightning strikes, disconnect the mains cable from the socket and any antenna plugs from your hi-fi system!
- If the device is not used for a long period of time or is unattended, the power supply should be disconnected. Disconnect the mains plug from the socket!
Remote Control and Battery
This product comes with a remote control and a battery. The following must be observed when handling remote controls and batteries:
- If the batteries are discharged, the range of the remote control will decrease significantly. If this happens, replace the batteries immediately.
- Always use high-quality CR2025 lithium button cells as replacement batteries.
- Make sure that the polarity is correct when inserting the battery into the battery compartment!
Caution!
Improper handling can lead to material damage.
- Do not drop the remote control!
- Do not expose the remote control and battery to water or other liquids!
- Do not operate or store the remote control and battery in locations with high humidity or particularly high or low temperature!
Danger!
Leaking or exploding batteries can pose a health hazard and cause damage to goods.
- If you do not use the device for a long time or if the batteries are depleted, remove the batteries from the remote control to prevent discharge, leakage of acid, or explosions.
- Leaking batteries must be replaced immediately.
- If you find a leaking battery, do not touch the leaking material and dispose of the batteries immediately!
- Do not touch leaking batteries!
- Should your skin, eyes, or mouth come into contact with the leaking material, clean the affected area immediately with water and contact a doctor!
Danger! Do Not Ingest Battery, Chemical Burn Hazard!
Ingestion of batteries can cause severe internal burns and death within a short time span.
- Ensure that batteries do not get into your body by any means, in particular that they cannot be swallowed!
- Keep new and used batteries away from children.
- If the battery compartment does not close securely, stop using the product and keep it away from children.
- If you think that batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention!
Care and Cleaning Tips
Caution!
Improper handling of the appliance may result in damage.
- Always unplug the appliance before cleaning it!
- Clean the appliance regularly with a soft, no more than slightly moistened cloth! Mild soapy water can also be used to clean stubborn stains.
- Never use strong cleaning agents or solvents such as petrol, spirit, or similar!
- Before recommissioning, make sure that all connections are correct, that there are no short circuits, and that the device is completely dry.
Accessories
We don't just create exceptional speakers and electronics; we also offer the perfect accessories. From cables to adapters, you'll find everything useful for our products.
Attention to Detail
With us, you won’t find off-the-shelf electronics but always products with that special something. This includes unique surface textures and innovative concepts that make our devices truly stand out. We add nothing to the signal and take nothing away. Pure HiFi reproduction in the truest sense.
Nubert Offers More
We develop all nuElectronics models in Schwäbisch Gmünd. From the housing to the drivers and even the sound tuning, every detail is optimized by our engineers. Our quality management team at the main plant ensures the final inspection of design, technology, and sound, so you receive the best possible product.
X-Remote App
With the Nubert X-Remote app, many functions can be conveniently controlled from your smartphone. In addition to the typical controls for volume and system status, the app allows precise sound adjustments – even using our X-Room Calibration feature on iOS. The app is available for free on the Google Play Store for Android and the Apple App Store for iOS.
Test results
We are awarded. And proud of it.
The art of sound in perfect balance
Versatile technical fireworks
Nubi Controletti di Fasci Alta
Accessories
We not only build exceptional loudspeakers and electronics, but also offer the matching accessories. So you can find everything useful for our products, from cables to adapters.
Our recommendations
Not the right one? We recommend taking a look at related products that you might like.
Reviews
Login
Honest speakers - Honest reviews
Satisfied? Or can we do something better with our products? Then write us your review. Simply log in to your account and write the review of your order here.
Here with us, every review is checked for authenticity and is then approved. So you can be sure that the feedback you give us about our products is genuine.
7 September 2024
Irres Teil...
Nachdem ich mir nach langem sparen und mühsamen suchen eine nuPower A und nuVero170 gebraucht gekauft habe. War nach etwa einem Jahr auch der aktuelle Zuspieler fällig. Hier habe ich nach reiflicher Überlegung nun doch das Geld in Neuware, weil auch gebraucht (noch) nicht verfügbar, in die nuControl X investiert. Grund waren Streaming Features, PhonoAmp, sonstige Eingänge usw + die reichhaltigen Equalizer Features. Nun ist die Zuspielqualität im Streaming oft nicht besonders hochwertig, leider oft aber auch nicht die Aufnahmen aus den 60er-00ern. Mit dem Equalizer und Raumeinmessung sind jedoch (für mich) überragende Ergebnisse erreichbar, die mit dem vorherigen Zuspieler (NAD C390DD) nicht möglich waren. Das Signal über XLR auf die nuPower ist selbst bei hohen Lautstärken perfekt störungsfrei, die Raumeinmessung erledigt einen überraschend guten Job. Und der Klang ist jetzt auf einem perfekten Niveau für alle Bedürfnisse. Selbst schlecht aufgenommene und produzierte Metal Alben aus den "vor 00ern" können aufs beste getrimmt werden und per unterschiedlicher EQ Presets abgerufen werden. Die hardware und der Audio-Output sind überragend... #### Einzige Manko's und Jammern auf hohem Niveau sind: - die fehlende Möglichkeit das System von Netzwerk DHCP auf statisch umzustellen. Falls die IP sich mal ändert, verkraftet die TIDAL Konnektivität das so eher semi. TIDAL aus/einloggen behebt es und die nuControl ist nun DHCP reserviert. - die Fähigkeiten der (iphone design only) App, die Suche in TIDAL ist per se nicht schlecht und vor allem ausreichend flink, die Filterungseben ermöglichen schnellen Zugang über Kreuz zu allen Inhalten (wirklich gut). Aber das kleine iOS native Suchfeld, sowie ein Abbruch bei betätigen der "return taste" sind eher ärgerlich. Hier kann aber Entwicklung in der Software Abhilfe schaffen, daher ist es für mich kein richtiger Negativpunkt. Premium Schmankerl wäre noch eine PC App (Win,Lx,MAC) um das Gerät anzusteuern, analog zu BluOS vom NAD -> aber das ist wirklich maximales Jammern auf hohem Niveau.
Technical information
| Device type: | Preamplifier |
|---|---|
| Width: | 43,0 cm |
| Height: | 11,0 cm |
| Depth: | 39,0 cm |
| Weight: | 8,6 kg |
| Packaging dimensions (W x H x D): | 54,0 cm x 49,0 cm x 25,0 cm |
| Shipping weight: | 11,2 kg |
| Power consumption in standby mode: | 0,5 W |
| Standard colour: | Black |
| Color: | Black |
| EAN / GTIN: | 4260166757170 |
| Country of origin: | China |
| WEEE-Reg. No.: | DE 48888173 |
| Remote control: | IR remote control |
| App control: | Nubert X-Remote |
| Operation on the device: | Touchscreen and rotary control |
| Digital coaxial inputs: | 2 |
| Digital optical inputs: | 2 |
| USB inputs: | 1x USB type A, 1x USB type B |
| Ethernet: | 1 |
| WIFI: | Yes |
| Bluetooth: | Yes |
| XLR inputs: | 2 |
| Phono input: | 1 (MM / MC) |
| Audio cinch inputs: | 3 |
| AES/EBU inputs: | 1 |
| Digital coaxial outputs: | 1 |
| Digital optical outputs: | 1 |
| USB outputs: | 1x USB type A (power port) |
| XLR outputs: | 1 |
| Audio cinch outputs: | 1 |
| Headphone outputs: | 1x 6.35 mm jack, 1x 4.4 mm jack |
| Audio Pre-Out: | 1 |
| Subwoofer: | 2 |
| Bluetooth codec: | aptX HD, aptX Low Latency, AAC, SBC |
| Nubert X-Connect: | Send / Receive |
| Bass/treble control: | Adjustable in stages |
| Loudness: | adaptive |
| Calibration system: | X-Room Calibration |
| Equaliser: | Parametric equaliser |
| Trigger outputs: | 2x 12 V Mini-XLR |
