nuJubilee 50
07171 87 12 0
Product
nuJubilee 50
- Modern all-rounder: perfect hi-fi sound for every application
- Timelessly elegant look: slim design, only 15,5 cm wide and 94 cm high
- Upgradable: can be optionally supplemented with a subwoofer and wireless adapter
- Powerful sound: full bass and optimum speech intelligibility
- Connectivity: Bluetooth®, Dolby®, DTS:X and Bluetooth aptX HD on board
- Chic: elegant lacquer finish meets intuitive operation with remote control
Complete technology at a jubilee price
It goes without saying that we are presenting another exclusive nuJubilee in the company's 50th year. Here it is: a visually attractive, modern active loudspeaker ensemble, the nuJuilee 50. The floorstanding loudspeakers inspire with comfortable full equipment and the typical Nubert sound. Available in a choice of classic black or fresh white, our nuJubilee 50 makes everyday life more beautiful. They perfectly combine state-of-the-art technology with an elegant design, optional with the anniversary logo. Experience powerful bass, precise sound reproduction and the usual Nubert quality in a limited edition. Get your personal nuJubilee 50 now and celebrate 50 years of experience and 50 years of inspiring sound with us!
50 years of Nubert
Two modern dome tweeters with a diameter of 25 millimetres, which have already proven themselves in the Nubert range, cover the high-frequency range. Two 118 mm diameter bass-midrange drivers with polypropylene composite cones ensure concise sound reproduction in the mid frequencies. All drivers are specially manufactured for Nubert and have been optimized for their respective purpose in cooperation with our engineers over many development stages. But as we all know, more is always possible: our engineers have included the addition of a subwoofer. The connection is made either directly via cable or wirelessly with the optional nuConnect trX/trXS wireless adapter.
Captivating atmosphere on the TV
As a classic upgrade for the TV, the nuJubilee 50 provide significantly more volume and clearer voices. When connected via HDMI eARC, the volume can be conveniently adjusted using the TV remote control. With the integrated Voice+ function, dialog is reproduced clearly and intelligibly.
Smart stereo system
The nuJubilee 50 have been developed for maximum detail reproduction and are therefore also suitable as a replacement for the classic stereo system. Your favorite tracks can be streamed via Bluetooth from your smartphone or transferred via cable from an existing CD or network player.
Even better with nuSub
41 Hz (at -3 dB) lower cut-off frequency already offers a noticeable bass response. If even more bass is required, this is no problem: using our nuConnect trX/trXS wireless adapter, a subwoofer from our nuSub range can be easily integrated. Connection via cable is also possible, in which case the crossover frequency automatically switches to 80 Hz. Your advantage: flexible upgrading for more level reserves at the next party.
Elegant and flexible
Thanks to the simple Bluetooth connection, you can enjoy your music without any cables. Connect your device in seconds and stream your playlist without any complicated set-up.
Details
Remote control
The remote control with metal surface is clearly arranged and offers convenient access to the inputs, volume, DSP modes, sound control and a Bluetooth pairing button to connect the smartphone.
Wide and loudness
We have integrated adaptive loudness, which reproduces bass at full volume even at low volumes, and a wide function that makes the sound appear wider. Your advantage: maximum sound with extremely low space consumption.
Voice+ and sound control
Difficult to understand dialog is a thing of the past thanks to our Voice+ function. In addition, the bass range as well as the mids and treble can be adjusted. Your advantage: always perfect sound to suit your taste.
Dolby and DTS integrated
Modern films and streaming services usually come with a Dolby or DTS track that offers a channel- or object-based mix. We support these codecs in our loudspeakers and thus calculate the optimum sound from the data. Your benefit: better sound and the best possible compatibility.
Wireless subwoofer connection with nuConnect trX
The nuJubilee 50 can easily be equipped with a nuConnect trX / trXS wireless adapter. An analog sub-out connection is already available. This means that the speaker pair can be perfectly complemented by a subwoofer - for an even more impressive sound image.
Colors
Our nuJubilee models are silk matt and have a multi-layer lacquer finish. The choice is yours: White or black offers a good option for any living space for unobtrusive integration or to provide a point of contrast.
Design
The trend is towards greater living room integration and a more inconspicuous look for loudspeakers. The design brief was therefore clear: as little visible technology as possible with good usability. The result is speakers with a modern look and sleek style.
Safety Instructions
Nubert electronic GmbH
Nubertstraße 1, 73529 Schwäbisch Gmünd, Deutschland
Email: info@nubert.de Phone: +49 07171 - 8712-0
Safety Instructions
Before connecting and operating the device, the user manual and especially its safety instructions must be read in full. For your own safety, be sure to follow all warning and safety instructions in this manual and on the speaker. No work should be performed on the speaker by the user other than the described actions. Keep this document in a place where you can access it at any time. It should also be handed over to any future owners.
Intended Use
This speaker is designed exclusively for audio playback in dry indoor environments. Use the speaker only as described in this manual. Any other use (especially in safety-critical or medical applications, outdoor installation as with specially IP-certified products) is considered improper and may result in property damage or even personal injury. Nubert electronic GmbH assumes no liability for damage resulting from improper use.
General Instructions
Never operate the speaker unattended!
Risk of Electric Shock!
To reduce the risk of electric shock, the speaker must not be opened by the user. There are no user-serviceable parts inside the speaker. Servicing and repairs should only be carried out by qualified personnel authorized by Nubert. In case of service needs, please contact Nubert electronic GmbH directly (info@nubert.de)!
Risk of Suffocation!
Never leave children unattended with the speaker, remote control, or packaging! There is a risk of children getting entangled in the plastic packaging and suffocating. Ensure that children cannot detach small parts from the devices! These parts, as well as the battery of the remote control, could be swallowed and cause suffocation. If any parts are swallowed, seek medical assistance immediately!
Risk of Injury or Damage!
When moving the speaker, handle it with care to avoid injuries and damage!
Warning!
Since the speaker can only be completely disconnected from the mains via the power input on the rear of the device or by unplugging the power plug from the socket, it must be positioned so that you have free access to the power input or power plug. If any of the following conditions occur, turn off the speaker immediately and disconnect it from the power supply. Contact Nubert electronic GmbH (info@nubert.de) immediately!
- The speaker has been damaged or has fallen
- The power cable or power plug is damaged
- Objects or liquids have entered the speaker
- The speaker has been exposed to excessive moisture or rain
- The speaker is not functioning properly or shows a significant reduction in performance
- The speaker emits a burning smell, develops smoke, or produces unusual noises.
Use only accessories recommended by Nubert!
Placement Instructions
Warning!
An unstable placement may cause damage to the speaker.
- Place the speaker only on a flat, stable surface and ensure it cannot be knocked over!
- Ensure that cables are not accidentally pulled to prevent the speaker from tipping over or damaging the connection ports!
- Keep the speaker away from strong mechanical vibrations!
Warning!
Excessive heat buildup inside the device can shorten its lifespan or lead to fire.
- Never cover the rear of the speaker! Ensure there is a clearance of at least 10 cm at the rear and sufficient air circulation!
- Do not operate the speaker or remote control near heat sources such as radiators or ovens!
- Do not expose the speaker or remote control to direct sunlight!
- Never place burning candles or similar open flames on the speaker!
Risk of Explosion!
Placing the speaker in unsuitable locations may cause explosions. Do not use the speaker or remote control:
- In fire or explosion-prone environments!
- At extremely low or high temperatures!
- Near flammable gases or vapors!
- In areas with heavy dust accumulation!
- Near highly flammable materials!
Risk of Electric Shock!
The speaker carries mains voltage inside and has areas with voltages exceeding 35 V AC or DC. It has no special protection against liquid or object ingress. There is a risk of fatal electric shock.
- Never touch the speaker with wet hands!
- Use the speaker only in a dry location!
- Do not operate it outdoors or in humid environments!
- The speaker must be protected from all liquids, including dripping and splashing water.
- Do not place any liquid-containing objects (e.g., flower vases) on or near the speaker!
- If the speaker is brought from a cold to a warm environment, condensation may form inside. Wait at least 6 hours before turning it on, allowing it to reach room temperature and dry out!
- Do not use the speaker during rapid temperature changes!
- No objects or foreign materials should enter the device.
- If the speaker has been exposed to liquid or if objects have entered the interior, immediately unplug it and contact Nubert electronic GmbH (info@nubert.de)!
Risk of Injury or Damage!
For speakers with threaded inserts on the bottom: The threaded inserts on the bottom of the housing should only be used for mounting the supplied speaker feet! They are not designed for tensile loads and must not be used to attach hooks or similar supports to hang the speaker. A falling speaker can cause serious injury and damage.
Connection Instructions
General Connection Instructions
Unplug the power cord before making any wiring changes to the system!
- Ensure that all connections are properly made and that all plugs are securely inserted into the sockets before connecting the speaker to the power supply!
- Use only the designated cables and connectors for connections! Otherwise, damage or malfunctions may occur.
- When disconnecting connections from the speaker, always pull the plug, never the cable!
- Ensure all plugs fit securely in the sockets!
- Use only cables and accessories recommended by Nubert.
Risk of Electric Shock!
Faulty power supply systems or excessive mains voltage can cause electric shocks.
- All power supply or antenna systems connected to the speaker must comply with applicable legal regulations and standards and must be professionally installed by a licensed installation company.
- Use only the designated power cable to connect the speaker. The power cable and its plug must not be modified in any way.
- Ensure that the mains voltage at your location matches the speaker's requirements! The correct power supply specifications can be found on the label on the back of the speaker. It must not be connected to other power sources.
- Class 1 devices must be connected to the protective earth conductor of the electrical installation, which is at earth potential. Ensure that the protective earth installation at the connection point is correctly executed!
- When routing power cables, ensure that they cannot be damaged (for example, by heat or mechanical stress)! Pay special attention to the areas around plugs and distributors!
Warning!
Power surges in the electrical grid (e.g., due to lightning strikes) can damage or destroy the device and power supply unit.
- A surge protection device can provide some protection against excessive voltage in the power grid.
- However, the highest level of protection can only be ensured by completely disconnecting your devices from the power supply and antenna systems. Therefore, unplug the power cable from the socket and any antenna connectors from your Hi-Fi system during thunderstorms or when lightning is expected!
- If the speaker is not used for an extended period or is left unattended, the power supply should be disconnected. Unplug the power cord from the socket!
The package includes a remote control and a battery. When handling remote controls and batteries, observe the following: If the batteries are depleted, the remote control’s range will be significantly reduced. Replace the batteries immediately in such cases. Always use high-quality lithium button cells of type CR2025 as replacement batteries. When inserting the battery into the compartment, ensure the correct polarity by aligning with the + and - signs in the battery compartment!
Warning!
Improper handling may cause property damage.
- Do not drop the remote control!
- Do not expose the remote control or the battery to water or other liquids!
- Do not operate or store the remote control and battery in places with high humidity or extremely high or low temperatures.
Danger!
Leaking or exploding batteries pose a health hazard and can cause property damage.
- If the device is not used for an extended period or if the batteries are depleted, remove the batteries from the remote control to prevent discharge, acid leakage, or explosions.
- Leaking batteries must be replaced immediately.
- If you find a leaking battery, do not touch the leaked material and dispose of the batteries immediately!
- Do not touch leaking batteries!
- If the leaked material comes into contact with your skin, eyes, or mouth, immediately rinse the affected area with water and seek medical attention!
Risk of Internal Chemical Burns!
Swallowing batteries can cause severe internal burns within a short time and lead to death.
- Ensure that batteries do not enter your body in any way, especially through ingestion!
- Keep new and used batteries away from children.
- If the battery compartment does not close securely, stop using the product and keep it away from children.
- If you suspect that a battery has been swallowed, inserted into a body opening, or otherwise entered the body, seek medical attention immediately!
Care and Cleaning Tips
Warning!
Improper handling of the speaker may cause damage.
- Always unplug the power cord before cleaning the speaker.
- Before resuming operation, ensure that all connections are correct, no short circuits are present, and the speaker is completely dry.
- Never use harsh cleaning agents or solvents such as gasoline, alcohol, or similar substances!
Cabinet
We recommend using a common window cleaner sprayed onto a cotton cloth. This effectively removes most fingerprints and dirt. Alternatively, you can use window foam cleaner. We advise against using microfiber cloths, as they may cause micro-scratches on the surface.
Speaker Membranes and Chassis
To remove dust from a speaker chassis, use a lint-free cotton cloth and lightly wipe the membrane with very little pressure.
Committed to honest sound
We are a German company that has been developing and selling speakers directly for over 50 years. We stand for neutral reproduction, so that you receive exactly the same signal that is present on the source. We add nothing and leave nothing out. We promise! You can find more information about our philosophy here.
There's more to Nubert
We develop all our models in Schwäbisch Gmünd. Our engineers optimize every detail, from the cabinet to the loudspeaker chassis to the sound tuning. Once series production has started, all nuPro models are checked by us in Schwäbisch Gmünd for appearance, technology and sound to ensure that you receive a perfect product.
This product as second choice
In some installation locations - for example with rearspeakers behind a curtain - the visual appearance plays a subordinate role, but the function must be guaranteed without restriction. Here, our second choice is the ideal solution for price-conscious customers. These are exhibition items, customer returns or discontinued models with minor signs of use, but which have been technically inspected by our service department. We also give a full 2-year guarantee on the second choice.
X-Remote App
With the Nubert X-Remote app, many functions can be conveniently controlled from your smartphone. In addition to the typical controls for volume and system status, the app allows precise sound adjustments – even using our X-Room Calibration feature on iOS. The app is available for free on the Google Play Store for Android and the Apple App Store for iOS.
Accessories
We not only build exceptional loudspeakers and electronics, but also offer the matching accessories. So you can find everything useful for our products, from cables to adapters.
Reviews
Login
Honest speakers - Honest reviews
Satisfied? Or can we do something better with our products? Then write us your review. Simply log in to your account and write the review of your order here.
Here with us, every review is checked for authenticity and is then approved. So you can be sure that the feedback you give us about our products is genuine.
Technical information

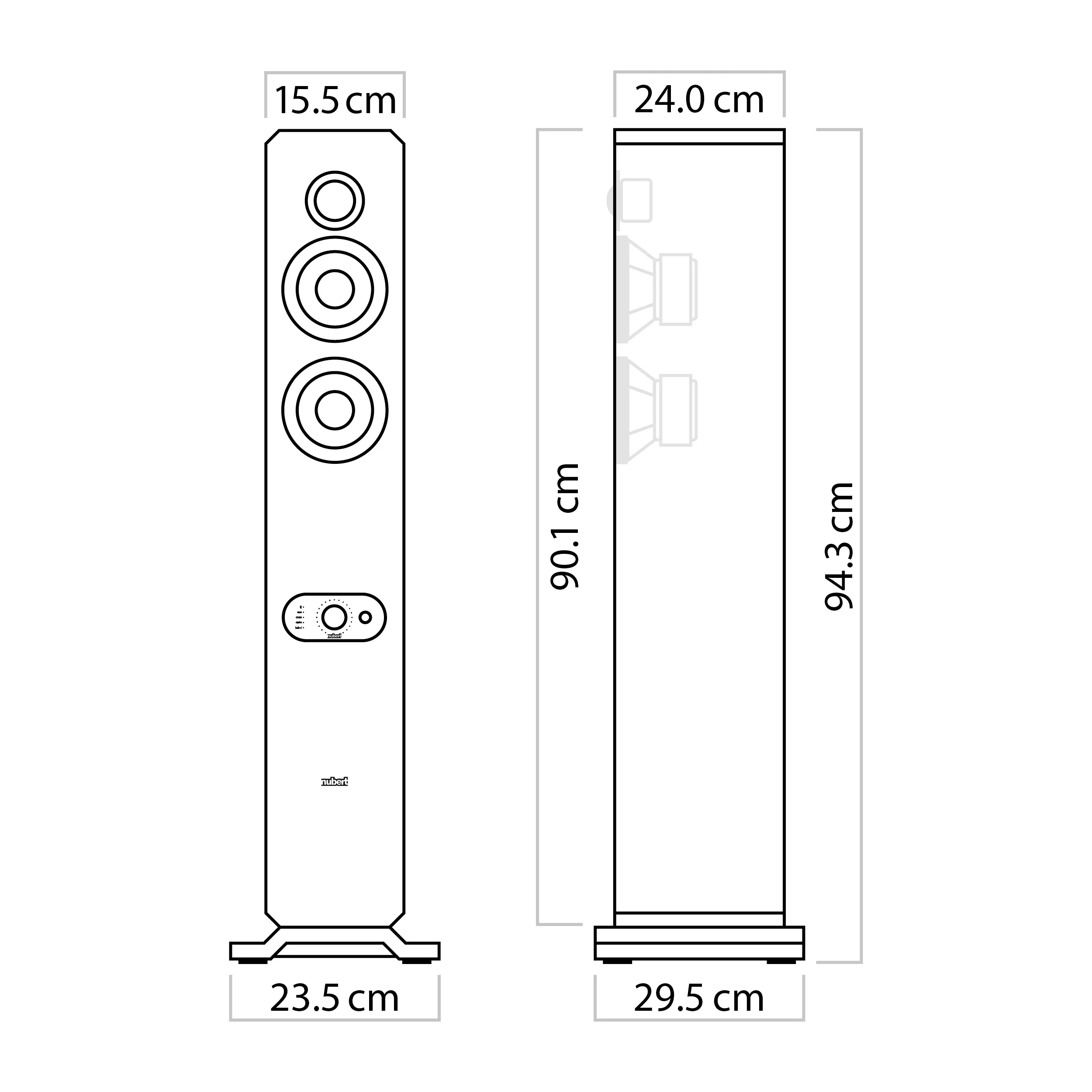

| Device type: | Active loudspeaker |
|---|---|
| Width: | 15,5 cm |
| Height: | 90,1 cm |
| Depth: | 24,0 cm |
| Width (additional information): | 23,5 cm (with Stand) |
| Height (additional information): | 94,3 cm (with stand) |
| Depth (additional information): | 29,5 cm (with stand) |
| Weight: | 29,4 kg |
| Power consumption in standby mode: | 0,5 W |
| Power consumption in idle mode: | 8 W |
| Maximum power input: | 200 W |
| Standard colour: | White |
| Color: | Multi-coat Lacquer White |
| Country of origin: | China |
| WEEE-Reg. No.: | DE 48888173 |
| Construction Method: | Bass reflex |
| Construction: | Direct radiator |
| System: | 2x 2,5-way |
| Tweeter: | 2x 25 mm per pair |
| Tweeter material: | Silk fabric |
| Tweeter crossover frequency: | 2250 Hz |
| Woofer: | 4x 118 mm per pair |
| Woofer material: | Polypropylene |
| Lower cut-off frequency (-3 dB): | 41 Hz |
| Upper cut-off frequency (-3 dB): | 22.000 Hz |
| Lower cut-off frequency (-6 dB): | 39 Hz |
| Upper cut-off frequency (-6 dB): | 22.000 Hz |
| Protection: | Soft clipping function |
| Signal propagation time (single/pair mode): | 8,5 ms |
| Continuous power: | 160 W |
| Pulse power: | 240 W |
| Remote control: | IR remote control |
| Operation on the device: | Rotary control |
| HDMI inputs: | 1 |
| HDMI CEC: | Yes |
| Digital coaxial inputs: | 1 |
| Digital optical inputs: | 1 |
| Bluetooth: | Yes |
| Audio cinch inputs: | 1 |
| Bluetooth version: | Version 5.0 |
| Bluetooth codec: | aptX HD, aptX Low Latency, AAC, SBC |
| Bass/treble control: | Nubert sound control |
| Loudness: | adaptive |
| Sound broadening: | Wide Sound |
| Language optimisation: | Voice+ |
Device type and recommended use
The nuJubilee 50 are presented in the best company tradition: a pair of perfectly matched speakers with an active master speaker and matching Client speaker that are ready for use in no time at all. The design of the Swabian sound columns is just as high-quality and unique as the technology: powerful amplifiers, highly developed drivers, precise, authentic acoustic tuning and compatibility with Dolby Audio plus DTS are the strong foundation for the best sound. Whether music, movie sound or gaming: the Nubert nuJubilee 50 set is always in its element. Individual customization options through the Voice+ mode for optimal voice reproduction or the Wide mode for a spatially expanded stereo stage are proof of Nubert's typical innovative technologies. Of course, the legendary Nubert sound balance is not missing either - and the numerous connection options, including HDMI-eARC and Bluetooth aptX-HD, ensure the greatest possible flexibility. The automatic switch-on and switch-off function also ensures maximum convenience. For its 50th anniversary, Nubert is thus focusing on the virtues that have made the Swabian sound manufacturer great: Solidity, high practical utility value, innovation and an excellent price-performance ratio. Here's to the next fifty years with the nuJubilee 50 and with you.
Connection
The connection is best made via HDMI cable to an ARC or eARC-capable output of the TV set. In this way, not only sound signals but also control information is transmitted. This means, for example, that the output volume can be adjusted using the TV remote control and both devices can be switched on or off together. Detailed settings are made using the high-quality remote control supplied. Alternatively, operation can be carried out using a rotary control on the front of the device; multi-colored LEDs display all the necessary information such as the selected input or the set volume. The nuJubilee 50 is not only recommended as an elegant TV sound system, but also cuts a fine figure as a compact stereo system for music enjoyment. The fully digital signal processing reproduces recordings with absolute authenticity and purity of sound. Classic hi-fi players such as network streamers or CD players as well as games consoles can be connected directly to the nuJubilee 50's analog or digital inputs. Smartphones, tablets or laptops can even connect wirelessly via the integrated Bluetooth receiver. Thanks to support for aptX HD (Android) and AAC (iOS), sound signals are transmitted in excellent quality. With the help of the optional nuConnect trX/trXS wireless adapter, the subwoofers in the nuSub series can also be controlled wirelessly. Alternatively, commercially available active woofers can also be connected to the sub-out via cable. With its high-quality three-way technology, innovative digital amplifier, wireless functions, extensive sound settings, special sound modes for effect and voice reproduction, simple expandability and easy operation, the nuJubilee 50 is the all-round happy sound concept for your living room!
Chassis
Two modern 25-millimeter diameter dome drivers, which have already proven themselves in the Nubert range, cover the high-frequency range. Four 118 mm diameter bass-midrange drivers with polypropylene composite cones ensure concise sound reproduction in the mid frequencies. All drivers are specially manufactured for Nubert and have been optimized for their respective purpose over many development stages in cooperation with our engineers.
Operation and adjustment options
The supplied remote control, which is characterized by its high-quality feel and elegant design, allows quick access to all control options and sound settings. Alternatively, important operations such as volume control can also be easily accessed via the TV if it is connected via the HDMI (e)ARC input. Optionally, the nuJubilee can also be operated using the push/turn control on the front of the device. Multi-colored LEDs arranged around the rotary knob are used as operating indicators, which provide clear information about the selected input and the status of the device and can also be easily seen through the fabric cover.
Sound control
The device has several sound settings to adjust the playback image to the preferences of the listener or the spatial situation. The bass and mid/treble reproduction can be amplified or attenuated in several stages. An adaptive loudness circuit automatically intensifies the bass reproduction at low volumes, thus accommodating human hearing perception. To expand the stereo stage, it is also possible to activate a sophisticated two-stage wide function that preserves the character of the recording in the best possible way. Finally, the Voice+ sound mode, which ensures clearer and more intelligible voice reproduction, is specially designed for quiet playback of films and television programs.
Connections and sound formats
There are four audio inputs on the back of the device. The most important is the HDMI eARC input (version 2.1), which is ideally connected to the ARC or eARC output of the TV and then not only receives sound signals, but also control commands from compatible TV models, for example for volume control. A digital Toslink input is also available for connecting additional hi-fi players, computers, consoles, AV or entertainment devices. The nuJubilee 50 not only reproduces sound in PCM format, but also decodes Dolby® Digital (AC3) and DTS Digital Surround. It is therefore ideally equipped to play soundtracks from Blu-ray discs, DVDs or streaming videos and prepare them for stereo playback in the best possible way. If necessary, the correct format, output and ARC function must be activated on the player. It can also be paired with tablets, cell phones and other compatible devices via Bluetooth and thus also receive audio signals wirelessly. Thanks to support for aptX HD and AAC, transmission takes place in high quality and with the lowest possible delay via aptX Low Latency. With an optional nuConnect trX wireless adapter, subwoofers can also be connected wirelessly. A USB power port allows this adapter to be easily powered.
Energy
The nuJubilee 50 has extremely energy-efficient amplifier and control electronics and is also equipped with a convenient automatic energy-saving function that switches the speaker on automatically or puts it into power-saving stand-by mode when not in use. In this stand-by mode, which can also be activated manually using the remote control or the rotary knob, the sound system consumes less than 0.5 watts. The speakers can also be completely disconnected from the mains using a toggle switch on the back. The wide-range power supply allows this active speaker to be used with AC mains voltages from 110 to 120 and 220 to 240 volts.
More information in "Technology at its best"
For all technically interested music and home cinema enthusiasts who are not put off by hard facts and metrological details, Günther Nubert's "Technik satt" offers plenty of technical context and electro-acoustic background knowledge as well as the topic of sound optimization and insights into the development and history of Nubert loudspeakers and devices.
